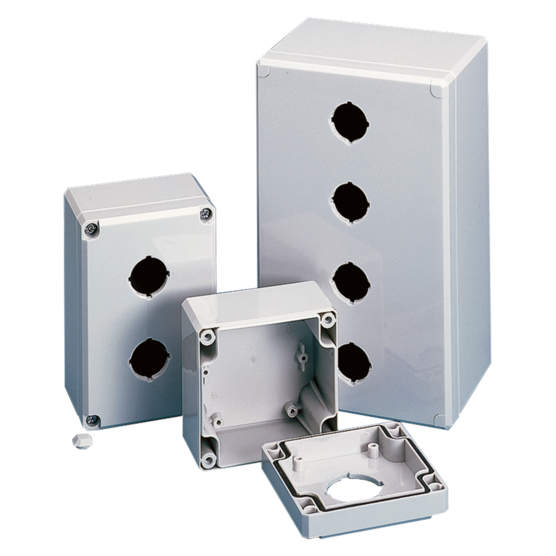

Hoffman Q1PBPCD | QLine D Pushbutton, Type 4X, 1PB x 30.5mm, Polycarbonate
Hoffman Q1PBPCD | QLine D Pushbutton, Type 4X, 1PB x 30.5mm, Polycarbonate

Hoffman Q1PBPCD | QLine D Pushbutton, Type 4X, 1PB x 30.5mm, Polycarbonate

Part Number: 654511
0 Review(s)
Write a Review
Availability:
$82.96
Retail Price:$91.26
Your Savings:$8.30(9%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Used for insulating and housing 30.5-mm or 22.5-mm pushbuttons in hostile environments, QLine D Enclosures have contoured bodies with flush cover screws for an attractive, contemporary appearance.

Purchase panels separately




https://www.alldataresource.com/assets/images_commscope/features.jpg

Main Features

  • High-impact polycarbonate material is used for both body and cover
  • Polycarbonate material is easily punched, drilled, filed or sawed
  • Straight side walls permit ganging of multiple enclosures
  • Cross-point captivated cover screws are stainless steel
  • Mounting holes molded directly adjacent to cover screws
  • Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
  • Molded internal pads for mounting optional panels, rails or other components
  • Seamless foam-in-place gasket assures watertight and dust-tight seal
  • Screws provided for mounting optional panel
  • Optional panels are unpainted plated steel
  • Mounting hardware furnished
  • Material is halogen free



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Industry Standards

  • UL 508A Listed; Type 4, 4X, 12, 13; No. E61997
  • cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; No. E61997
  • Enclosure flammability evaluated per UL 508A
  • NEMA/EEMAC Type 4, 4X, 12
  • CSA File Number 42186: Type 4, 4X, 12
  • IEC 60529, IP67



https://www.alldataresource.com/assets/images_tripplite/applications.jpg

Hoffman On Demand Alternatives

  • Catalog #: Q1PBPCDM



https://www.alldataresource.com/assets/images_commscope/specs.jpg

Specifications

Height2.95 in / 75 mm
Width2.87 in / 73 mm
Depth3.11 in / 79 mm
Protection RatingNEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66
MaterialPolycarbonate
FinishSmooth Gloss
ColorLight Gray
Color CodeRAL 7035
Thickness0.12 in / 3 mm
Hole Size30.5 mm
External Dimensions3.23 x 3.15 in / 82 x 80 mm
PanelQ88PD
BULLETIN NUMBERQ41



https://www.alldataresource.com/assets/images_commscope/pdf.jpg

Documents and Downloads

Hoffman Q1PBPCD Data SheetClick to View
Hoffman Q1PBPCD Declaration of ComplianceClick to View
Hoffman Q1PBPCD CERT-00186Click to View
Hoffman Q1PBPCD CE-00048Click to View
Hoffman Q1PBPCD QLine D Pushbutton, Type 4X Spec SheetClick to View
Hoffman Q1PBPCD QLine D PB Type 4X Spec-01410 (French)Click to View
