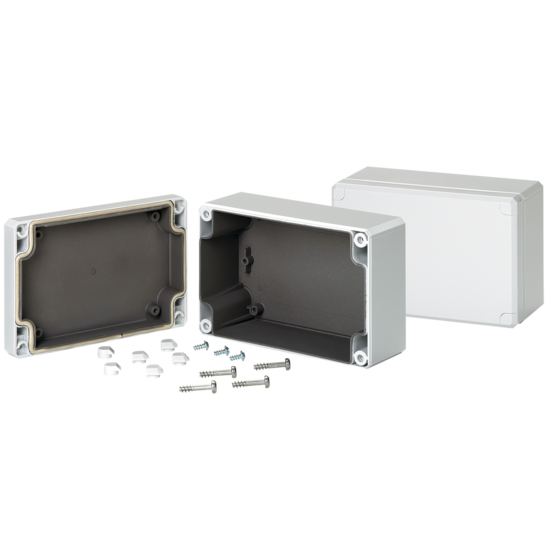

Hoffman Q24169PCEMC | QLine D, EMC, Type 4X, 240x160x90mm, Polycarbonate
Hoffman Q24169PCEMC | QLine D, EMC, Type 4X, 240x160x90mm, Polycarbonate

Hoffman Q24169PCEMC | QLine D, EMC, Type 4X, 240x160x90mm, Polycarbonate

Part Number: 654544
0 Review(s)
Write a Review
Retail Price:$283.80
Your Savings:$25.80(9%)
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

QLine D polycarbonate EMC enclosures have contoured bodies and flush cover screws for an attractive, contemporary appearance while also providing EMC protection in corrosive environments.

Purchase panels separately


Main Features

  • Body is impact-resistant polycarbonate
  • EMC conductive coating in base and cover
  • Gasket of silver/silicone
  • Mounting holes molded directly under cover screws
  • Cross-point captivated cover screws are stainless steel
  • Mounting tracks along body side walls and bosses on cover for PC card installation
  • Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
  • Molded internal pads for mounting optional panels, rails and other components
  • Screws provided for mounting optional panel


Industry Standards

  • UL 508A Listed; Type 4, 4X, 12, 13
  • cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997
  • Enclosure flammability evaluated per UL 508A
  • NEMA/EEMAC Type 4, 4X, 12, 13
  • IEC 60529, IP66


Related Accessories

  • Catalog #: ASPB05075NM



Height9.45 in / 240 mm
Width6.3 in / 160 mm
Depth3.54 in / 90 mm
Protection RatingNEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66
Interior FinishEMC Conductive Coating
External Dimensions240 x 160 mm / 9.45 x 6.30 in
Internal Dimensions233 x 153 x 84 mm / 9.17 x 6.02 x 3.29 in
Panel Size8.31 x 5.83 in / 211 x 148 mm
Mounting8.98 x 5.12 in / 228 x 130 mm
ColorLight Gray


Documents and Downloads

Hoffman Q24169PCEMC CE-00033Click to View
Hoffman Q24169PCEMC Declaration of ComplianceClick to View
Hoffman Q24169PCEMC CERT-00187Click to View
Hoffman Q24169PCEMC QLine D, EMC, Type 4X Spec SheetClick to View
Hoffman Q24169PCEMC Data SheetClick to View
