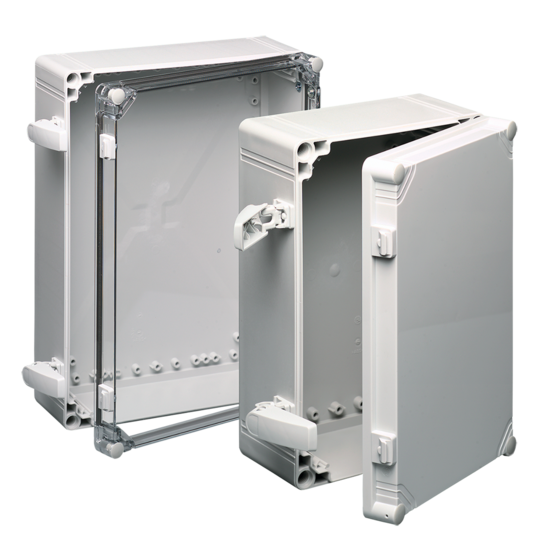

Hoffman Q603013PCI | QLine I, Type 4X, 600x300x132mm, Polycarbonate
Regular price
$362.38
Unit price
Brand: Hoffman
|
SKU:
654631
Regular price
$362.38
Unit price
Description
Description
The largest-sized QLine enclosure, QLine I provides easy access and protects larger controls from corrosive environments. Choose from screw cover, hinge, internal mounting, variable depth and quick-release latch options to meet your design and security requirements. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.
Purchase panels and extension rings separately
Main Features
- Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
- Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are ABS for ABI series
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Mounting holes molded directly under cover screws
- Molded internal pads for mounting optional panels, rails and other components
- Molded internal rails for mounting adjustable-depth panel kit
- Screws provided for mounting optional panel
- Optional extension rings are molded polycarbonate
- Cover includes a molded-in hole for wire lead
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
- Material is halogen free
- Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws
- Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997
- cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997
- Enclosure flammability evaluated per UL 508A
- Polycarbonate Enclosure
- NEMA/EEMAC Type 4, 4X, 12, 13
- CSA File No. 42186: Type 4, 4X, 12, 13
- IEC 60529, IP66
Related Accessories
- Catalog #: ASPB05075NM
- Catalog #: QIHK
Specifications
| Height | 11.81 in / 300 mm |
|---|---|
| Width | 23.62 in / 600 mm |
| Depth | 5.12 in / 130 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66 |
| Material | Polycarbonate |
| Panel Size | 22.05 x 10.24 in / 560 x 260 mm |
| Mounting | 22.83 x 11.02 in / 580 x 280 mm |
| Panel | Q6030PI |
| Cover Style | Opaque |
| Latch Type | Screw Cover |
| External Dimensions | 600 x 300 mm / 23.62 x 11.81 in |
| Extension Ring | Q6030EXTI |
| BULLETIN NUMBER | Q41 |
