Brand: Hoffman
|
SKU:
654685

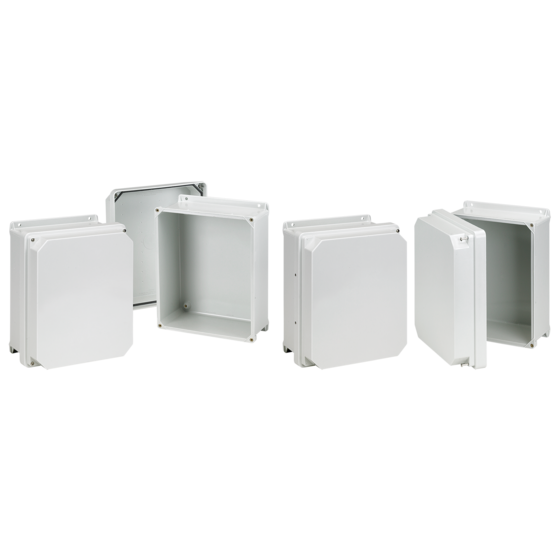

Hoffman RHJ1008HWLG | Raised Cover with Screws, Type 4X, 9.70x7.71x5.91, Fiberglass, Hinged
Regular price
$242.84
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman RHJ1008HWLG | Raised Cover with Screws, Type 4X, 9.70x7.71x...
Regular price
$242.84
Unit price
Description
Description
Enclosures feature a raised, overlapping-cover design that ensures a more-secure seal and offers increased internal space for mounting components. Available with removable and hinged covers for application flexibility.
A x B x C are internal dimensions.
Purchase panels separately. Optional stainless steel, composite and aluminum panels are available for most sizes.
Main Features
- Compression-molded fiberglass construction
- Overlapping solid raised-cover
- Cover fastens with screws
- Type 304 stainless steel piano hinges on hinged models
- Integral mounting brackets
- Enclosures protect equipment and operators from indirect electrical contact
Specifications
Specifications
Industry Standards
- UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E54315
- cUL Listed per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13; File No. E54315
- Enclosure flammability per UL 508A
- NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13
- CSA File No. 217184: Type 3, 3R, 4, 4X, 12, 13
- IEC 60529, IP66
- Meets NEMA Type 3RX requirements
Specifications
| Height | 9.7 in / 246 mm |
|---|---|
| Width | 7.71 in / 196 mm |
| Depth | 5.91 in / 150 mm |
| Protection Rating | NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; NEMA Type 3; IP66 |
| Material | Fiberglass |
| Panel Size | 8.75 x 6.88 in / 222 x 102 mm |
| Steel Panel | A10P8 |
| Door Fasteners | Hinged, 2 screws |
| Aluminum Panel | A10P8AL |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Finish | Smooth Matte |
| BULLETIN NUMBER | HJ |
