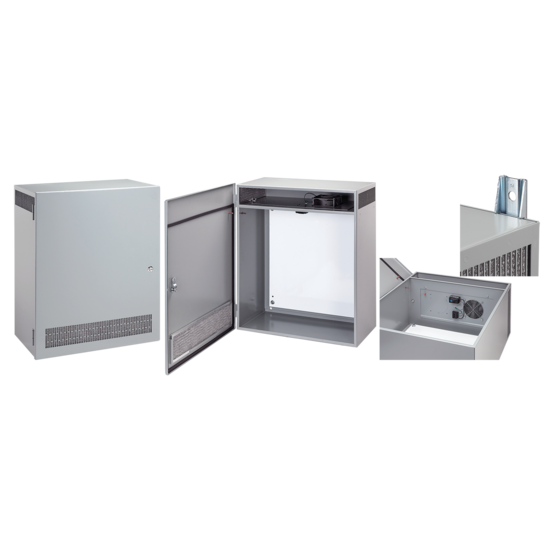

Hoffman T1F200LP | T1Flo Vented Enclosure with Fan, Type 1, 40.00x24.00x12.75, Gray, Steel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman T1F200LP | T1Flo Vented Enclosure with Fan, Type 1, 40.00x2...
Description
Description
T1Flo Vented Enclosure with Fan, Type 1, have a thermostatically controlled forced-air ventilation system for the removal of heat. Ideal for control systems in HVAC or industrial environments that have a combination of heat-sensitive electronics with high heat producing components such as (VFD) drives, inverters, PLCs and non-hardened processors.
Required Airflow
The following equation is used to calculate the airflow required in a forced-air system to remove heat and maintain enclosure temperature a given amount above the ambient temperature.
CFM = WT x 3.16 / Tint - Tamb
CFM = Required airflow (ft.3 / min.)
WT = Total heat dissipated in enclosure (watts)
Tamb = Ambient or external Temperature (degrees F)
Tint = Desired internal Temperature (degrees F
Assumptions: Specific values and physical sizes must be verified. Typical motor efficiency is 91 percent; typical drive efficiency is 97 percent.
Main Features
- Lift-off Hinged Door
- Active cooling ventilation system with factory installed, thermostatically controlled fan (115 VAC) and filter
- Terminal block power connection for fan
- Washable expanded metal filter
- Slotted quarter-turn latch
- Collar studs for mounting optional panel
- Grounding provision on door and body
- Mounting holes on back of enclosure
- Accepts optional mounting foot kit
- Door gasket
Specifications
Specifications
Specifications
| Height | 40 in / 1016 mm |
|---|---|
| Width | 24 in / 610 mm |
| Depth | 12.75 in / 324 mm |
| Protection Rating | NEMA Type 1; IP30 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Gray |
| Color Code | ANSI 61 |
| Thickness | 14 ga / 1.9 mm |
| Panel Size | 33.00 x 21.00 in / 838 x 533 mm |
| Perforated Panel | A36P24PP |
| Panel Gauge | 12 |
| BULLETIN NUMBER | A1DR |
