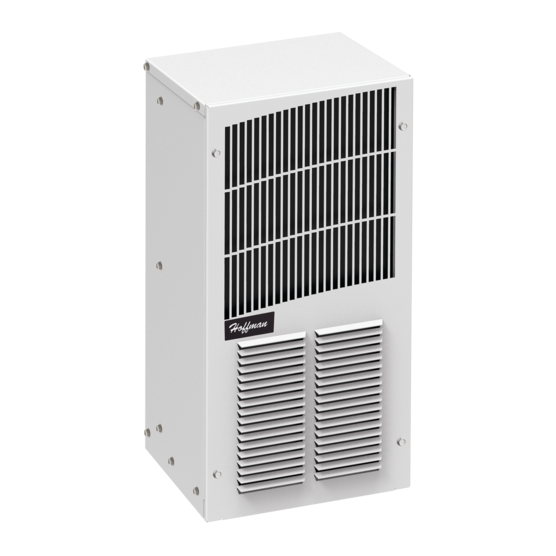

Hoffman T200246G400 | T-Series Compact Outdoor without Heat T20, 2000BTU 460V 1PH, Lt Gray, Steel
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Hoffman T200246G400 | T-Series Compact Outdoor without Heat T20, 20...
Description
Description
T-Series Compact Outdoor Air Conditioners provide a compact footprint to minimize real estate and maximize capacity. Their discreet design helps them to blend into rugged factory or outdoor environments. Each unit is equipped with corrosion-resistant components, compressor heaters and head pressure controls for optimal outdoor performance.
Reference the Spec Sheet for complete product specifications, performance curves and detailed drawings
Main Features
- Compact footprint to minimize real estate and maximize capacity
- Models for 115, 230 and 460 VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- UL Listed to save customers time and money with agency approvals (some models UL recognized)
- Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
- Reliable mechanical thermostat on enclosure side of the unit
- Dual condenser-side air movers for performance redundancy
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Exterior and fully recessed mounting options on many models
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Outdoor Air Conditioner models include: Thermostat, corrosion-resistant components, malfunction switch, compressor heater, head pressure control, enclosure heater and R134A refrigerant
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
Specifications
Industry Standards
- UL/cUL Listed; Type 12, 3R, 4; 4X optional; File No. SA6453
- UR/cUR Recognized
- UR/cUR Recognized on select models, reference performance data tables.
- CE
- EAC
- Telcordia GR-487 capable
Hoffman On Demand Alternatives
- Catalog #: T200226G100
- Catalog #: T200216G150
- Catalog #: T200216G100
- Catalog #: T150116G150
- Catalog #: T150116G100
Specifications
| Height | 24.25 in / 615.95 mm |
|---|---|
| Width | 10 in / 254 mm |
| Depth | 9.9 in / 251.46 mm |
| Nominal Capacity Btu/h | 2000 Btu/h |
| Nominal Capacity Watts | 586 W |
| Nominal Voltage | 460 V |
| Number of Phases | 1 |
| Voltage AC | 400 V |
| Operating Temperature | ?40 to 131 °F / ?40 to 55 °C |
| Max Current | 1.9 A |
| Protection Rating | NEMA Type 4; NEMA Type 3R |
| Remote Access Control | No |
| BULLETIN NUMBER | MCL |
