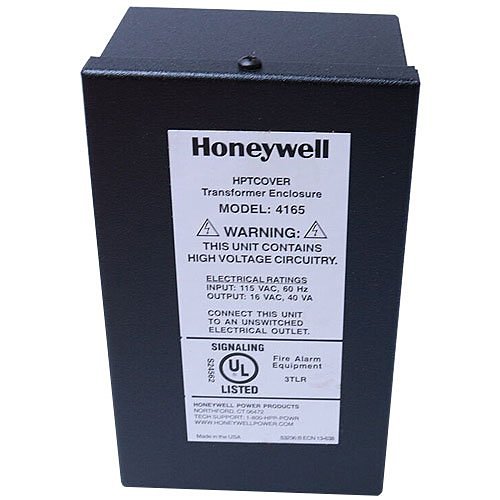

Honeywell Fire Systems Us / Fire-Lite HPTCOVER | Plug-In Transformer Enclosure

The HPTCOVER is a transformer enclosure used in applications where the installation requires a plug-in transformer to be securely affixed to an AC wall outlet. This steel enclosure mounts over any duplex wall receptacle and attaches like an electrical wall plate. Two screws secure the cover to the enclosure to prevent unauthorized access to the plug-in transformer. With three convenient half-inch conduit knockouts in the bottom- side- and back- the low-voltage wiring can easily exit to an alarm panel or device that requires power.

Honeywell Fire Systems Us / Fire-Lite - HPTCOVER - Features

• Secures the plug-in transformer from accidental AC disconnect.
• 16-gauge steel construction with black pebble-grained powder-coat finish
• Three convenient half" knockouts located in the bottom- side- and back of enclosure.
• Mounting screws on front cover to prevent unauthorized access
• Requires minimal installation time.
• Designed to securely mount over most standard electrical wall plates

Honeywell Fire Systems Us / Fire-Lite - HPTCOVER - Specifications

Manufacturer	Honeywell International- Inc
Product Model	4165
Product Type	Access Control Enclosure
Manufacturer Part Number	HPTCOVER
Material	Steel
Color	Black
Depth	2.6"
Height	6.2"
Depth (mm)	65.024
Height (mm)	156.261
Width	3.7"

Honeywell Fire Systems Us / Fire-Lite - HPTCOVER - Documents and Downloads

Honeywell Fire Systems Us / Fire-Lite HPTCOVER Data Sheet

Click to View
