Brand: Honeywell Fire Systems Us / Sk | SKU: 785338

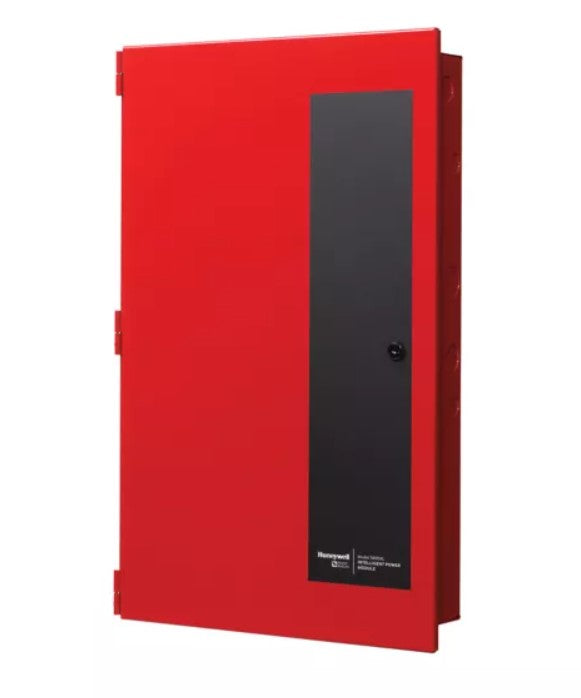

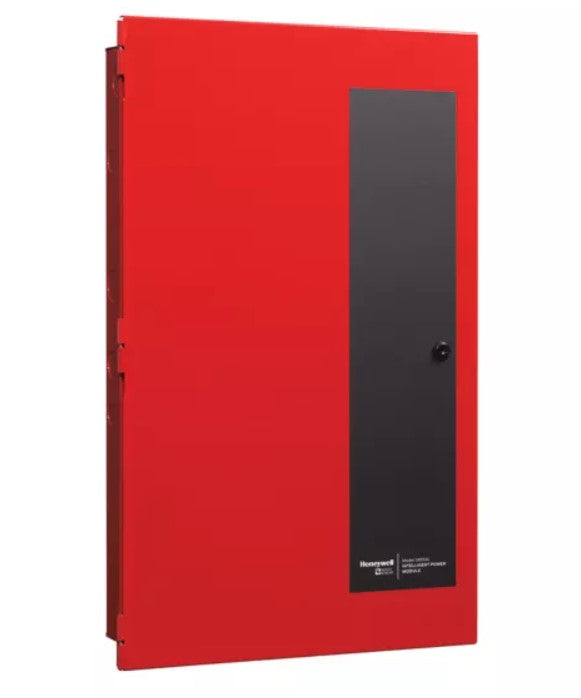

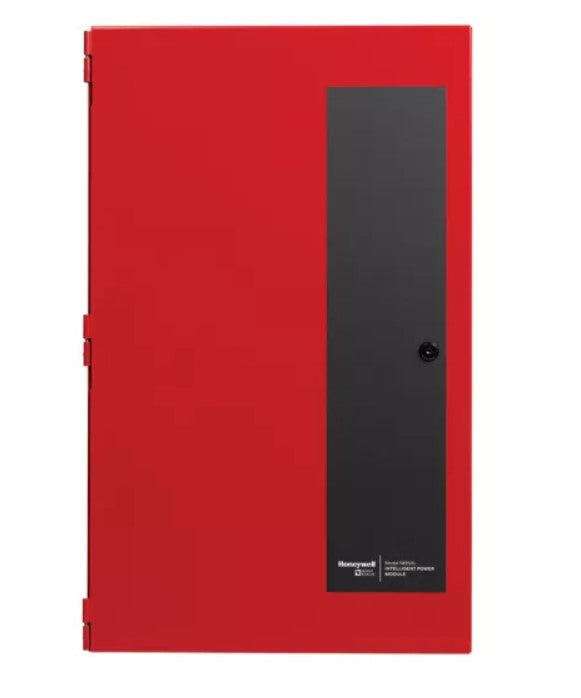

Honeywell Silent Knight 005895XL | Intelligent Power Module, Flush/Surface Mount, 120/240 Vac

$1,199.81

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Honeywell Silent Knight 005895XL | Intelligent Power Module, Flush/Surface Mount, 120/240 Vac Vrms 60 Hertz, 2.5/1.4A, 24 Vdc, 6A, 16-1/8" Width X 4-1/8" Depth X 26-3/8" Height, Red

5895XL intelligent power modules are 6A notification power expanders that provide their own AC power connection, battery charging circuit, and backup battery for use with Silent Knight® addressable fire alarm control panels.

Honeywell Fire Systems - 005895XL - Features

6.0A output power
Flexput I/O circuits, 3A each, programmable as notification circuits, auxiliary power circuits, or initiation circuits
Supports Class A configuration for SBUS & Flexput circuits
Ground loop isolation
2 Form C programmable relays rated at 2.5A at 24 VDC
Transient protection
SBUS repeater conditions the RS-485 signal
Up to 6,000 feet wiring distance from 5895XL (same distance as main FACP)
Battery charging capacity 35 Ah
Large cabinet can house two 18 Ah batteries or RBB accessory cabinet can house battery sizes larger than 18 Ah
Room in FACP cabinet to mount two 5815XL SLC expander’s
Built-in synchronization for appliances from AMSECO®, Gentex®, Faraday, System Sensor®, and Wheelock®

Specifications

Honeywell Fire Systems - 005895XL - Specifications

Weight	0.2 lbs
Dimensions	16.12 × 4.12 × 26.37 in
UNSPSC Code	46171600

Documents and Downloads

Honeywell Fire Systems 005895XL Data Sheet
