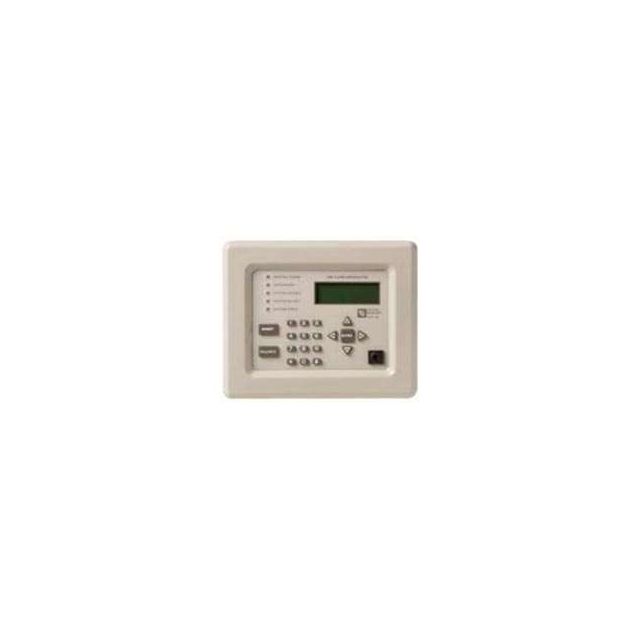

Honeywell Silent Knight 5860 | Fire Alarm Control Panel Remote Annunciator, 24 Vdc, 32 To 120 Deg F, 9.1" Width X 1.5 Depth X 7.4" Height, Gray, For 5700/5808/5820Xl/5820Xl-Evs Fire Alarm Control Panel

5860 is a gray, remote, four line LCD annunciator that lets users operate and program their Silent Knight fire alarm control panel from up to 8 different locations in a facility.

With features comparable to the panel's built-in annunciator, the 5860 offers an intuitive, 80-character keypad with control over reset, silence, detector status checking, fire drill, and programming. To access system programming, an installation code is required. The annunciator can be wired to the panel's system bus from up to 6,000 feet away.

The 5860 is compatible with the 5700, 5808, 5820XL, and 5820XL-EVS IntelliKnight addressable fire alarm control panels.,

Honeywell Silent Knight - 5860 - Features

• 80-Character Backlit LCD Display
• Tactile and Audible Feedback
• Accepts User Codes or Fire Fighter? Key
• Install Upto Eight Annunciators per Fire Alarm Control Panel
• Larger Keypad Buttons for System Reset and Silence
• RS-485 Interface to Panel
• On-Boarezo Sounder Audibly Indicates Alarms, Troubles, and Supervisories
• Five Status LEDs for Alarm, Supervisory, Trouble, Silence and AC Power Conditions
• Tech Info : UL, NFPA 72, CSFM

Honeywell Silent Knight - 5860 - Technical Specification

• Operating Voltage: 24 VDC
• Standby Current: 20 mA max
• Alarm Current: 25 mA
• Physical: 9.1 W x 7.4 H x 1.5 D (23.1 W x 18.8 H x 3.8 D cm)
• Shipping Weight: 2.8 lbs (1.3 kg)

Honeywell Silent Knight - 5860 - Specifications

Type	Annunciator
UNSPSC Code	46171600

Honeywell Silent Knight - 5860 - Documents and Downloads

Honeywell Silent Knight 5860 Spec Sheet	Click to View
Honeywell Silent Knight 5860 Data Sheet	Click to View
