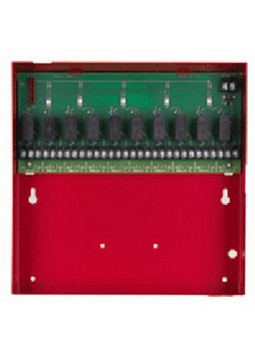

Honeywell Silent Knight 5883 | Relay Expander Module

Relay Driver Board For Use With 5880

5883 Relay Interface Board provides 10 general purpose Form C relays that can be used to control auxiliary devices, interface to building control systems, or interface to remote annunciators.

The 5883 is activated by the 5880 LED/IO module. The unit is powered by a separate 24 VDC input, this keeps the current draw down allowing a single 5880 to control up to four 5883 modules.

Honeywell Silent Knight - 5883 - Features

• 10 general purpose Form C relays
• Relays rated at 5.0A @ 30 VDC or 250 VAC resistive
• Each output can be individually activated by the 5880 module
• Provides control output forauxiliary devices
• Relays rated at 5.0A @ 30VDC or 250 VAC
• resistive
• Housed in protective cabinet
• UL listed to 864 standards

Honeywell Silent Knight - 5883 - Technical Specification

• Operating Voltage: 24 VDC
• Current Draw: Standby: 0 mA, Alarm: 220 mA (22 mA/Relay)
• Form C Relay: 5.0A@30 VDC or 250 VAC resistive
• Cabinet Dimensions: Height 10-1/8 x Width 10-3/8 x Depth: 3-1/8
• Operating Temperature: 32F to 120F (0C to 49C)

Honeywell Silent Knight - 5883 - Specifications

Type	Relay Board
UNSPSC Code	46171600
