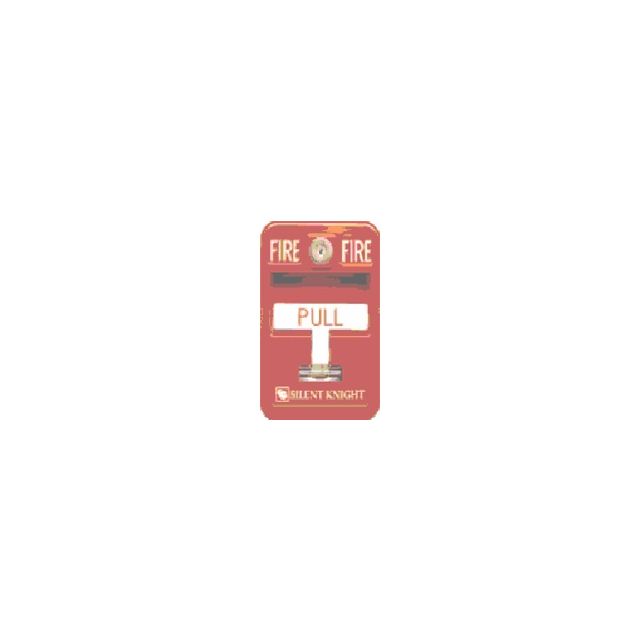

Honeywell Silent Knight PS-SATK | Pull Station, Single Action, Key Reset

PS-SATK is a single action manual pull station made with high-quality, die cast metal and includes a SPST switch and terminal strip connections.

The PS-SATK operates by pulling the handle on the front of the station as far down as it will go, at which point the handle locks into place and is easily visible from up to 50 feet., then allowing the PULL handle to be grasped in a one-handed motion.

The PS-SATK is also supplied with a scored acrylic break rod and can be reset by opening the station with a key and placing the handle in the normal upright position and relocking the station.,

Honeywell Silent Knight - PS-SATK - Features

• UL listed
• CSFM approved
• MEA (BSA) approved
• ADA compliant
• Weatherproof model approved for outdoor use
• Single action
• Terminal connections
• Reset using the same keys as Silent Knight enclosures
• Surface mount backboxes available
• High-gloss red enamel finish on die cast metal
• Corrosion-resistant gold-plated contacts

Honeywell Silent Knight - PS-SATK - Technical Specification

• Switch Rating: 1 amp at 125 VAC, or 30 VDC
• Pull Station Dimensions: 4-3/4 H x 3-1/4 W x 1-1/8 D
• Surface Mount Backbox Dimensions: 4-3/4 H x 3-1/4 W x 2-1/4 D (cast and sheet metal)
• Color: Red with raised white letters, white PULL bar with raised red letters.

Honeywell Silent Knight - PS-SATK - Specifications

UNSPSC Code

46171600
