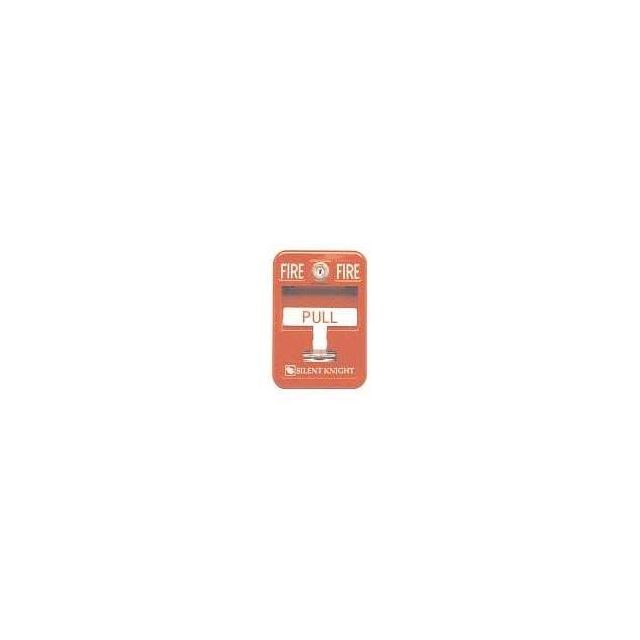

Honeywell Silent Knight PS-SATK-WP | Fire Alarm Signal Pull Station, Single-Action, Terminal Connection, Weatherproof, 125 Volt Ac, 30 Volt Dc, 1 Ampere, 3-1/4" Width X 2-1/4" Depth X 4-3/4" Height, Red

PS-SATK-WP is a single action manual pull station made with high-quality, die cast metal and includes a SPST switch, terminal strip connections, and comes enclosed in a weatherproof box.

The PS-SATK-WP operates by pulling the handle on the front of the station as far down as it will go, at which point the handle locks into place and is easily visible from up to 50 feet., then allowing the PULL handle to be grasped in a one-handed motion.

The PS-SATK-WP is also supplied with a scored acrylic break rod and can be reset by opening the station with a key and placing the handle in the normal upright position and relocking the station.,

Honeywell Silent Knight - PS-SATK-WP - Features

• Weatherproof Model Approved for Outdoor Use
• Terminal Connections
• Reset Using the Same Keys as Silent Knight Enclosures
• Surface Mount Back Boxes Available
• Corrosion-Resistant Gold-Plated Contacts
• UL listed
• CSFM approved
• MEA (BSA) approved
• ADA compliant
• Weatherproof model approved for outdoor use
• Single action

Honeywell Silent Knight - PS-SATK-WP - Technical Specification

• Switch Rating: 1 amp at 125 VAC, or 30 VDC
• Pull Station Dimensions: 4-3/4 H x 3-1/4 W x 1-1/8 D
• Surface Mount Backbox Dimensions: 4-3/4 H x 3-1/4 W x 2-1/4 D (cast and sheet metal)
• Color: Red with raised white letters, white PULL bar with raised red letters.

Honeywell Silent Knight - PS-SATK-WP - Specifications

UNSPSC Code

46171600

Honeywell Silent Knight - PS-SATK-WP - Documents and Downloads

Honeywell Silent Knight PS-SATK-WP Spec Sheet	Click to View
Honeywell Silent Knight PS-SATK-WP Data Sheet	Click to View
