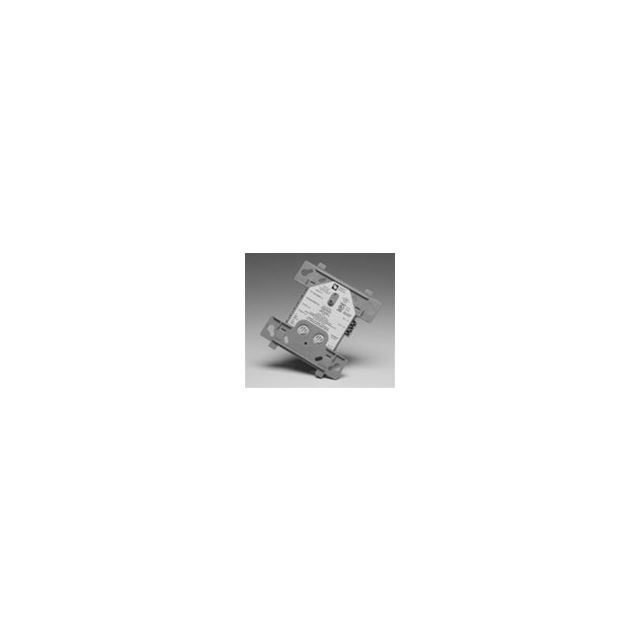

Honeywell Silent Knight SK-ZONE | Fire Alarm Control Panel Interface Module, Intelligent, 2-Wire, 15 To 32 Volt Dc, 90 Milliampere Alarm, 24 Volt Dc, 12 Milliampere Standby, 4" Width X 1-1/4" Depth X 4-1/2" Height

SK-ZONE is an intelligent two-wire interface module foruse with Silent Knight IntelliKnight series fire alarm control panels (FACPs) and allows the FACP to interface and monitor two-wire conventional smokedetectors.

The SK-ZONE's design lets a user retrofit an existing building and use existing contentional devices.,

Honeywell Silent Knight - SK-ZONE - Features

• Converts a Conventional Two-Wire Loop to an SLC Loop
• Fully Supervised
• Support for Style B and Style D Wiring
• Panel Controlled Status LED that Flashes Green in Normal State and is Solid Red in Alarm
• Attractive Ivory Cover Plate
• Rotary Address Switcheor Fast Installation
• SEMS Screws for Easy Wiring
• Made in USA

Honeywell Silent Knight - SK-ZONE - Technical Specification

• Operating Voltage: 15 32 VDC
• Current Draw: 5.1 mA max (LED on)
• Operating Current: 270 A (LED flashing)
• Standby Current: 300 A max. @ 24 VDC with communication
• End-of-Line Resistance: 3.9k W
• Initiating Device Circuit Wiring Resistance: 25W max
• Dimensions: 4.5" x 4.0" x 1.3" (11.5 cm x 10.2 cm x 3.2 cm)
• Shipping Weight: 6.3 oz (196 g)

Honeywell Silent Knight - SK-ZONE - Specifications

Type	Initiating Circuit
UNSPSC Code	46171600

Honeywell Silent Knight - SK-ZONE - Documents and Downloads

Honeywell Silent Knight SK-ZONE Spec Sheet	Click to View
Honeywell Silent Knight SK-ZONE Data Sheet	Click to View
Honeywell Silent Knight SK-ZONE Installation Manual	Click to View
