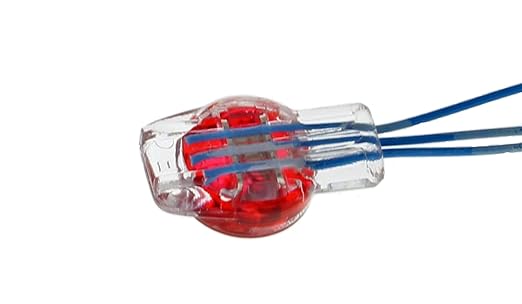

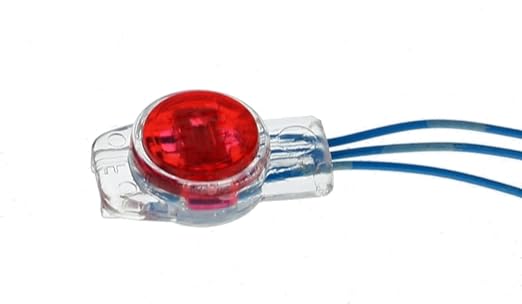

Ideal Industries Usa 85-925 | Ur-I Idc Connector 3-Wire Butt Splice...
Description
Description
Red Color; 0.066 Inch Max. Insulation; Butt Splice Connection Type; 26 to 19 AWG Solid Wire Size; 25 Standard Package; Copper Wire Type; Number of Wires 3; Application Low Voltage Telecommunication Cable, Moisture Resistant Sealant Protection
Traditionally used in landline telephone applications, these IDC splice connectors can be used to splice, tap or repair damaged many types of low voltage conductors in voice and data applications. The Ideal Insulation Displacement Wire Connectors are designed to connect butt splices for 3-wire applications. Use 1, 2 or 3 ports as needed.
Ideal Industries Usa - 85-925 - Features
- Used for repairing broken wires and for adding an additional wire to an existing circuit
- For solid copper conductors of 26-19 AWG (0.4-0.9mm) having maximum insulated O.D. of .066 in. (1.67mm)
- Moisture-resistant sealant protects wires from corrosion
- Designed for low-voltage applications
- Quick, easy 1-step splicing insert unstripped conductors, crimp with 33-719 tool
Specifications
Specifications
Ideal Industries Usa - 85-925 - Specifications
| Brand Name | Ideal Industries Usa |
|---|---|
| Manufacturer Part Number | 85-925 |
| Item Description | Ur-I Idc Connector 3-Wire Butt Splice 25/Pack |
| UPC: | 78325085925 |
| Catalog Number: | 85-925 |
| Wire Type: | Copper |
| Wire Size: | 26 to 19 AWG Solid |
| Connection Type: | Butt Splice |
| Maximum Insulation: | 0.066 Inch |
| Color: | Red |
| Standard Package: | 25 |
| Additional Information: | Number of Wires 3; Application Low Voltage Telecommunication Cable, Moisture Resistant Sealant Protection |
| CATALOG DESCRIPTION: | IDEAL, INSULATION DISPLACEMENT CONNECTOR, UR-I, BUTT SPLICE, CONNECTION: 3-WIRE, INSULATION: O.D 066 IN MAX, COLOR: RED |
| Category: | Shielded Twisted-Pair Connectors |
| Full Technical Description: | Red Color; 0.066 Inch Max. Insulation; Butt Splice Connection Type; 26 to 19 AWG Solid Wire Size; 25 Standard Package; Copper Wire Type; Number of Wires 3; Application Low Voltage Telecommunication Cable, Moisture Resistant Sealant Protection |
| Manufacturer: | Ideal Industries, Inc. |
| Product Description: | Ideal 85-925 Ur-I Idc Connector 3-Wire Butt Splice 25/Pack |
| Sub-Category: | Insulation Piercing/Displacement Connector |
| UNSPSC: | 39121444 |
| UPC 12 Digit: | 783250859252 |
