Description
Description

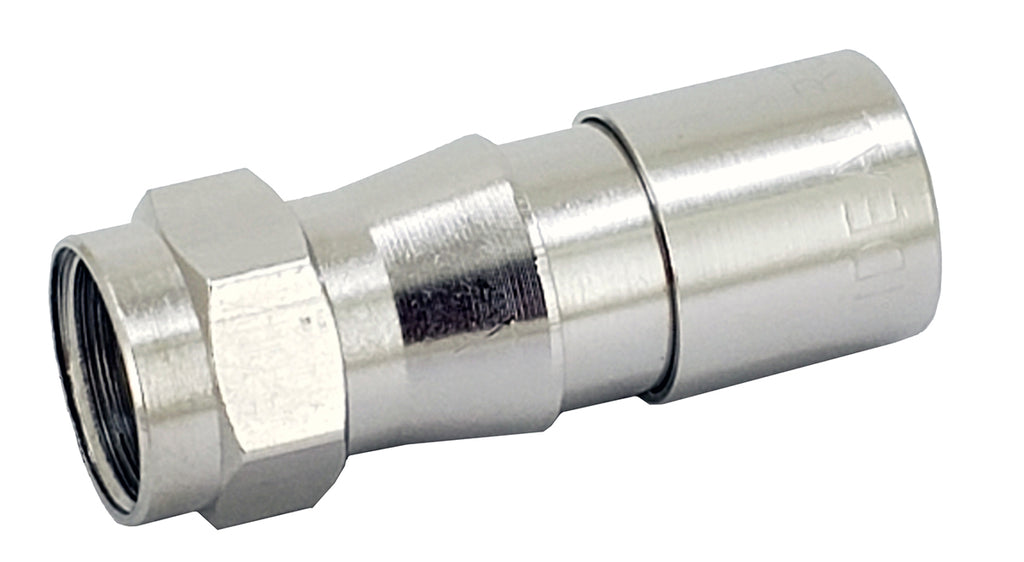

The Z6F Fast + Simple compression F connector is designed to simplify indoor RG-6 Quad and RG-6 coax cable to connector preparation. The Z6F is based on our best-selling RTQ F connector, with modifications to address the traditional time consuming and difficult challenges of preparing and terminating RG6-Quad cables in the field. The Z6F attaches to cables and can be terminated in just seconds with very little force and effort compared to traditional Quad cable preparation methods. The connector features a robust nickel plated, all brass exterior and an open internal chamber that allows the cable to be inserted at a near zero insertion force. Cable preparation and compression use the same IDEAL or industry standard tools so the Z6F can be added to your connector termination options without investing in new tooling. Use in traditional cable or satellite applications for 75 Ohms cables rated up to 3GHz.
Ideal Industries Usa - 92-640 - Features
- Dielectric diameter: .175" - .183"
- Jacket diameter: .250" - .315"
- RTQ internal design - handles RG-6 regular and RG6 Quad
- Standard 21mm compression - Use with all IDEAL and most other compression tools
- Internal rear gripper design - collapses and retains cable
- Permanent connection - connector won't back off of cable over time >30 lbs. pull force
- Wide cable range: .250" - .315" jacket diameter
Specifications
Specifications
Ideal Industries Usa - 92-640 - Specifications
| Brand Name | Ideal Industries Usa |
|---|---|
| Manufacturer Part Number | 92-640 |
| Item Description | Z6F Fast+Simple Compre |
| Packaged Quantity | 25 |
| Product Line | DataCom |
| Product Model | 6FZIF |
| Product Name | Z6F Fast + Simple RG-6/6Q Compression F |
| Product Series | Connectors |
| Product Type | Antenna Connector |
| Connector Details | 1 x F Connector |
| Connector Plating | Nickel |
| Connector Type | F Connector |
| Color | Silver |
