Inovonics EN1723 | Dual Input Temperature Transmitter
Regular price
$120.20
Unit price
Brand: Inovonics
|
SKU:
10146858
Regular price
$120.20
Unit price
Description
Description

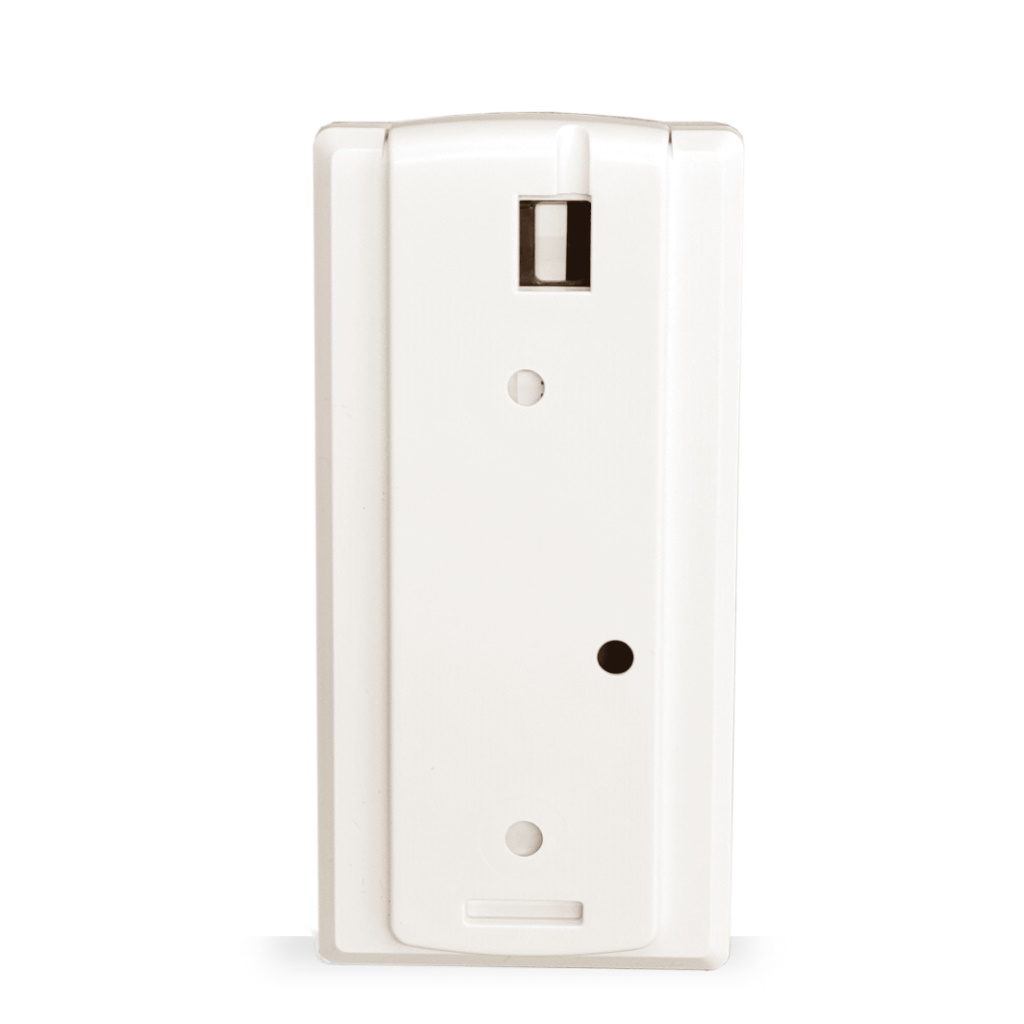

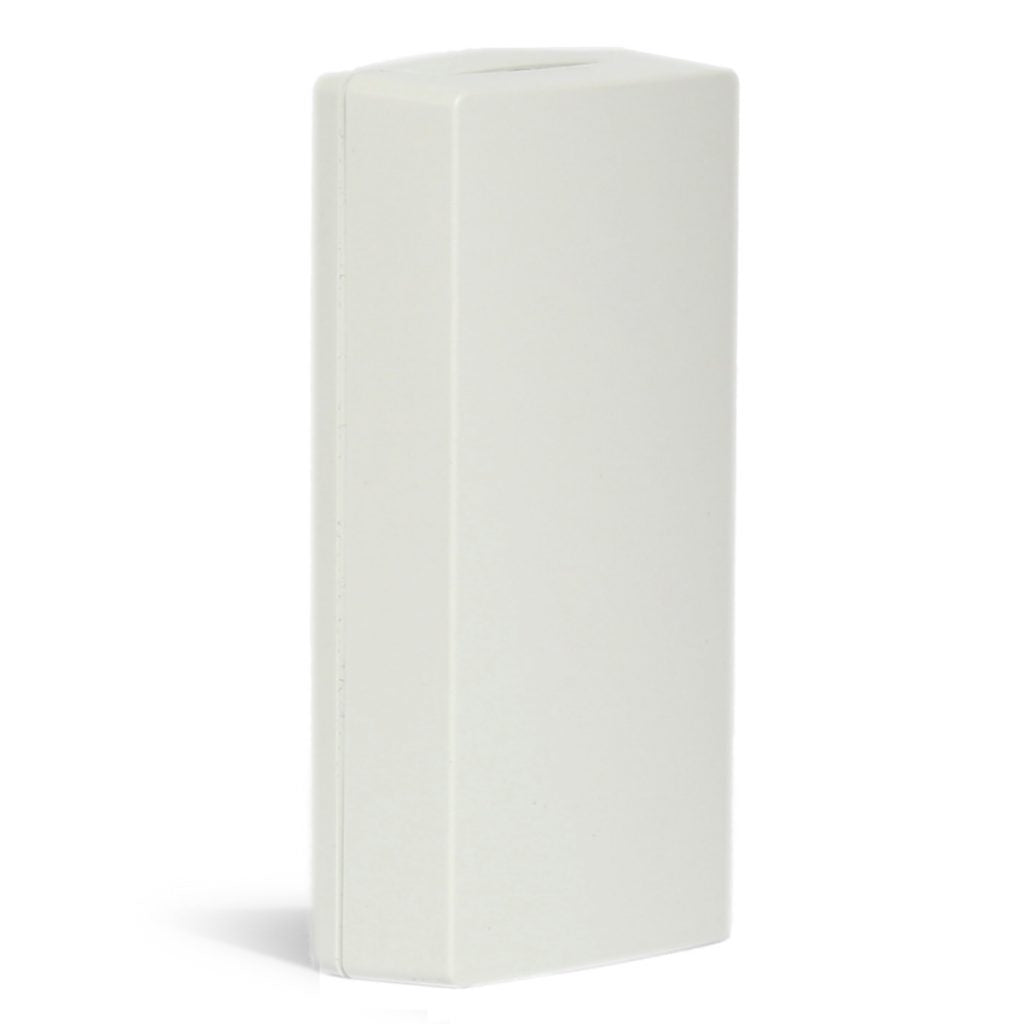

Inovonics EN1723 | Dual Input Temperature Transmitter
The Inovonics EN1723 dual input temperature transmitter provides internal measurement and external thermistor options in a single device. The on-board sensor is excellent for monitoring ambient indoor temperature, and the external sensor is user selectable to match your application.
Inovonics - EN1723 - Features
- Transmits temperature measurement periodically and upon significant change
- Transmission intervals from 10 seconds to 30 minutes
- Measurement range: Internal: -13° to 140°F (-25° to 60°C), External: -22° to 212°F (-30° to 100°C)
- Typical accuracy of 0.8°F (0.5°C) at room temperature
Specifications
Specifications
Inovonics - EN1723 - Specifications
| Dimensions | 3.5” x 1.7” x 0.9” (8.9 x 4.3 x 2.3 cm ) |
|---|---|
| Weight | 1.9 oz. (54 g) |
| Typical battery life | 8 years at a 5 minute transmission interval |
| Internal battery type | Panasonic CR123A |
| Compatibility requirements | Must be used with the Inovonics EN4000 serial receiver, EN4080 IP gateway or EN6040 network coordinator; requires an application designed to support advanced functionality |
| Units | Fahrenheit or Celsius |
| Range | -13 to 140°F (-25 to 60°C) |
| Typical accuracy | ±0.8°F at room temperature |
| Measurement type | Temperature or resistance |
| Temperature range | -22 to 212°F (-30 to 100°C) |
| Resistance range | 100 to 250,000 ohms |
| Typical resistance accuracy | + or - 1% from 100 ohms to 500 ohms, + or - 0.5% 500 ohms to 250K ohms |
| Temperature | -4 to 140°F (-20 to 60°C) |
