Brand: Kidde commercial
|
SKU:
784725

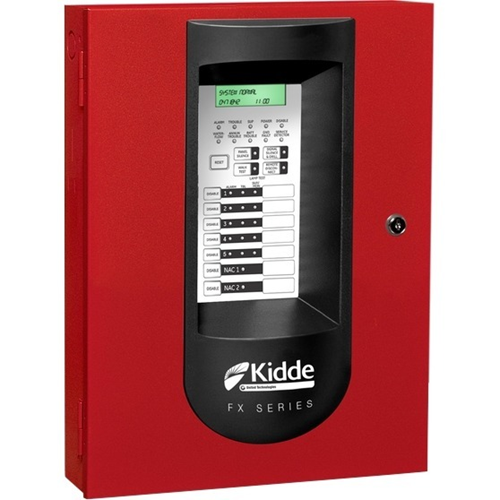

Kidde Commercial FX-5RD | 5 Zone Conventional Fire Alarm Control Panel with Dialer, Red
Regular price
$851.56
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Kidde Commercial FX-5RD | 5 Zone Conventional Fire Alarm Control Pa...
Regular price
$851.56
Unit price
Brand: Kidde commercial
|
SKU:
784725
Regular price
$851.56
Unit price
Description
Description
Kidde brand conventional fire alarm systems consist of 5 and 10 zone fire alarm control panels (FACP), an optional integrated upload/download DACT (dialer), intelligent/analog type detector features, serial annunciator modules, and serial remote relay modules. All FACPs and components are Listed to the 9th edition of the ANSI/UL 864 standard and CSFM/FDNY approved.
These systems incorporate features designed to simplify installation, operation and maintenance, including front panel programming, one person walk testing, and selectable IDC and NAC types. In addition, when used with CleanMe-compatible smoke detectors, these control panels provide intelligent type features such as remote maintenance alert and automatic drift compensation that significantly reduce the chance of a false alarm and simplify maintenance calls.
Kidde systems are powerful enough to meet the demands of today's life safety installations while leaving plenty of room to grow in the future. They support Class A operation by combining pairs of on-board IDCs or NACs to provide the necessary Class A circuits. For example, the FX-10RD comes factory set to support 10 Class B IDCs and 4 NACs. But, it can be field-configured to provide 5 Class A IDCs (no Class B IDC's), and 2 Class A NACs - or any other combination of circuits that fall within the circuit-pairing parameters.
These systems incorporate features designed to simplify installation, operation and maintenance, including front panel programming, one person walk testing, and selectable IDC and NAC types. In addition, when used with CleanMe-compatible smoke detectors, these control panels provide intelligent type features such as remote maintenance alert and automatic drift compensation that significantly reduce the chance of a false alarm and simplify maintenance calls.
Kidde systems are powerful enough to meet the demands of today's life safety installations while leaving plenty of room to grow in the future. They support Class A operation by combining pairs of on-board IDCs or NACs to provide the necessary Class A circuits. For example, the FX-10RD comes factory set to support 10 Class B IDCs and 4 NACs. But, it can be field-configured to provide 5 Class A IDCs (no Class B IDC's), and 2 Class A NACs - or any other combination of circuits that fall within the circuit-pairing parameters.
KIDDE is a registered trademark of Kidde IP Holdings Limited and is in no way affiliated with All Data Resource
Main Features
- Available in 5 and 10 zone (IDC) models
- CleanMe feature provides remote annunciation of a dirty detector
- Automatic drift compensation with select detectors reduces false alarms and extends dust life
- Listed to ANSI UL 864 9th Edition
- Models with fully integrated upload/download DAT enables PC programming
- Zone or NAC pairs convertible to single Class A Circuits
- Combination Waterflow and Supervisory IDCs
- NACs programmable by zone and individually selectable for notification appliances, continuous, temporal outputs, or coded
- Front panel programming simplifies installation and servicing
- Precision synchronization with compatible notification appliances and optional audible silence over two wires
- On-board relays for Alarm, Supervisory and Trouble
- Optional serial bus relay modules are programmable for Common, Zone, or Matrix activation
- Optional serial bus remote annunciator family
- One-Person walk-test (audible or silent)
- Optional City Tie and Reverse Polarity Modules
- Trim ring available for semi-flush mounting
- Remote Maintenance Alert and Automatic Drift Compensation that Significantly Reduce the Chance of a False Alarm and Simplify Maintenance Calls
- Kidde Systems are Powerful Enough to Meet the Demands of Today? Life Safety Installations While Leaving Plen ty of Room to Grow in the Future
- They Support Class a Operation by Combining Pairs of On-Board IDCS or NACS to Provide the Necessary Class a Circuits
- CleanMe Feature Provides Remote Annunciation of a Dirty Detector
- Automatic Drift Compensation with Seect Detectors Reduces False Alarms and Extends Dust Life
- Front Panel Programming Simplifies Installation and Servicing
Specifications
Specifications
Tech Info
- UL 864, ULC-S527, CSFM, FDNY
Specifications
| UPC Code | 793016036490 |
|---|---|
| Product Model | FX-5RD |
| Brand Name | Kidde Commercial |
| Country of origin | China. Country of origin is subject to change. |
| UNSPSC Code | 46171600 |
