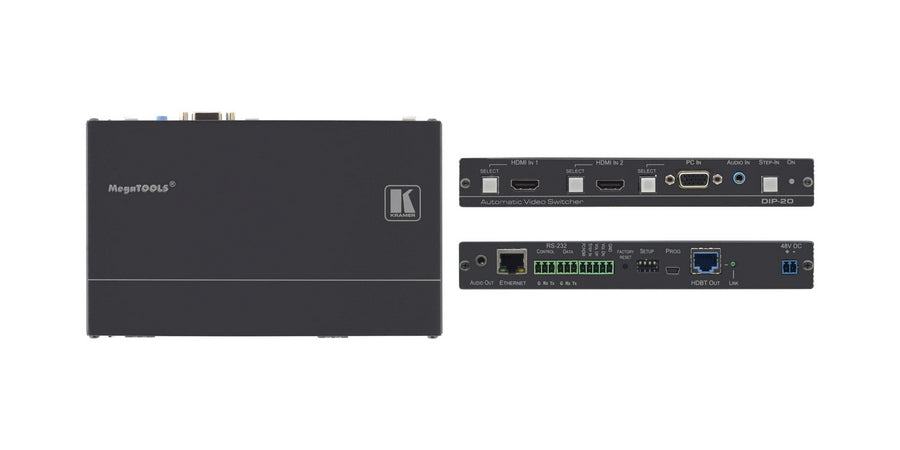

Kramer 20-80356090 | Auto Switcher, HDBT, 2 Input, 1 Output, 48VDC,...
Description
Description
DIP-20 is an extended reach 4K at 60 hz (4:2:0), hdbaset transmitter and step-in commander for VGA video, HDMI, and unbalanced stereo audio embedding and de-embedding. DIP-20 accepts HDMI and VGA video input, an ethernet signal, serial data, and an unbalanced stereo audio input (that is embedded into the output signal). It transmits the signal to an hdbaset (twisted pair) cable to a compatible receiver (for example, the TP-588D or TP-580RXR). DIP-20 is a poe (power over ethernet) provider and can power compatible poe acceptors (for example, TP-588D).
Kramer - 20-80356090 - Features
- Device Supported: Blu-ray Disc Player, Computer, Display, Speaker
- Connectivity Technology: Cable
- Maximum Operating Distance: 590.55 ft, 590.55 ft (180000 mm)
- Product Family: MegaTOOLS
Specifications
Specifications
Kramer - 20-80356090 - Product Categories
- Audio, Visual and Telephony
- Audio and Visual
- Video Signal Distribution
- Switchers
Kramer - 20-80356090 - Specifications
| Manufacturer Name | Kramer |
|---|---|
| Manufacturer Part Number | 20-80356090 |
| Item Description | Auto Switcher, HDBT, 2 Input, 1 Output, 48VDC, HDMI |
| Dimensions | WxHxD: 7.38 x 1 x 4.53 in. |
| Inputs | HDMI |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Operating Temperature | 0 to 40 C |
| Outputs | HDBT |
| Power Input | 48 VDC, 630 mA |
| Product Type | Auto Switcher |
| Resolution | 4K |
| Voltage | 48 |
| UPC | 7291063075897 |
