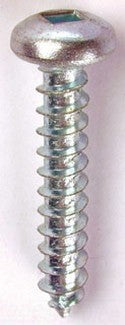

L. H. Dottie DDSMST834 | 8 x 3/4'' Square Drive Pan Head Sheet Metal Screw (Tuff Pack)
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
L. H. Dottie DDSMST834 | 8 x 3/4'' Square Drive Pan Head Sh...
Description
Description
Sheet Metal Screws are a versatile fastener with specially hardened spaced threads and sharp points, and are capable of tapping their own internal threads. Typical applications for Sheet Metal Screws include fastening light metal sheets, wood, and plastic. They are manufactured with case hardened steel and finished with a zinc plating. ASME B18.3 covers the general requirements for the dimensions and performance of Steel Sheet Metal Screws.
Specifications
Specifications
L. H. Dottie - DDSMST834 - Specifications
| UNSPSC Code | 31160000 |
|---|
L. H. Dottie - DDSMST834 - Physical Characteristics
| Type | Sheet Metal Screw |
|---|---|
| Drive Type | Square |
| Head Type | Pan |
| Thread Type | A |
| Point Type | AB |
| Size | #8 x 3/4'' |
| Dia./Thread Size | #8 |
| Head Diameter | 0.322'' - 0.306'' |
| Length (in) | 3/4'' |
| Head Height | 0.115'' - 0.105'' |
| Thread Pitch/Thread Per Inch | 15 |
| Driver Size | #2 |
| Material | Carbon Steel |
| Finish | Zinc Plated |
L. H. Dottie - DDSMST834 - Package Information
| Standard Qty | 500 |
|---|---|
| Master Qty | 3000 |
| Price Per | 100 |
| Package Length | 3.5 |
| Package Width | 3.7 |
| Package Height | 3.4 |
| Package Weight | 2.36 |
| Net Weight | 0 |
L. H. Dottie - DDSMST834 - Performance Data
| Rockwell Hardness | HRC 28 - 38 |
|---|---|
| Special Features | Tuff Pack, Zinc Plated |
| Applications | Light Metal Sheets, Wood, and Plastic |
L. H. Dottie - DDSMST834 - Certifications
| RoHS Compliant | Yes |
|---|---|
| Meets/Exceeds | ASME B18.6.3 |
