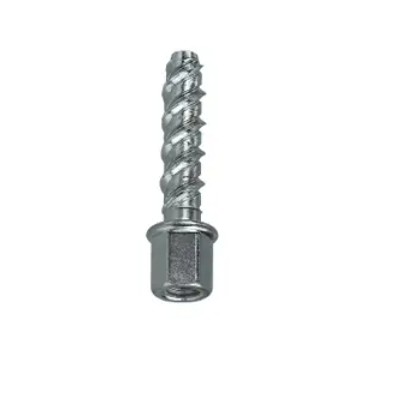

L. H. Dottie SSC12B | 1/2''-13 Concrete Bottom Mount Rod Hanger
Concrete Rod Hangers are manufactured for use in concrete slabs, beams, or concrete over metal where threaded rod is intended to be suspended. These carbon steel fasteners are robust screw anchors with threads that cut deep, creating a self-tapping concrete screw that offers low installation torque. Suitable applications for use are electrical conduit and cable-tray applications, pipe hanging, fire protection, and suspension of HVAC equipment.
Specifications
Specifications
L. H. Dottie - SSC12B - Specifications
| Install Tool | SCP50 |
|---|---|
| Anchor Type | Rod Hanger |
| Thread Type | Concrete |
| Screw Size | 3/8'' x 2-3/4'' |
| Rod Size | 1/2'' |
| Head Diameter | 11/16'' |
| Shank Length | 2-3/4'' |
| Thread Per Inch | 16 |
| Thread Pitch\Thread Per Inch | 3/8''-16 |
| Material | Carbon Steel |
| Finish Zinc Plated | Zinc Plated |
| Mount Style | Bottom |
| RoHS Compliant | Yes |
L. H. Dottie - SSC12B - Package Information
| Standard Qty | 50 |
|---|---|
| Master Qty | 250 |
| Price Per | 100 |
| Package Length | 5.4 |
| Package Width | 4.1 |
| Package Height | 2.7 |
| Net Weight | 0.16 |
| Package Weight | 8 |
| Pre-Drill Size | 3/8'' ANSI |
| Applications | Concrete Slabs, Beams, or Concrete Over Metal |
| Special Features | Self Tapping, Unique Thread Design, Quick & Easy Installation, Hardened Carbon Steel |
