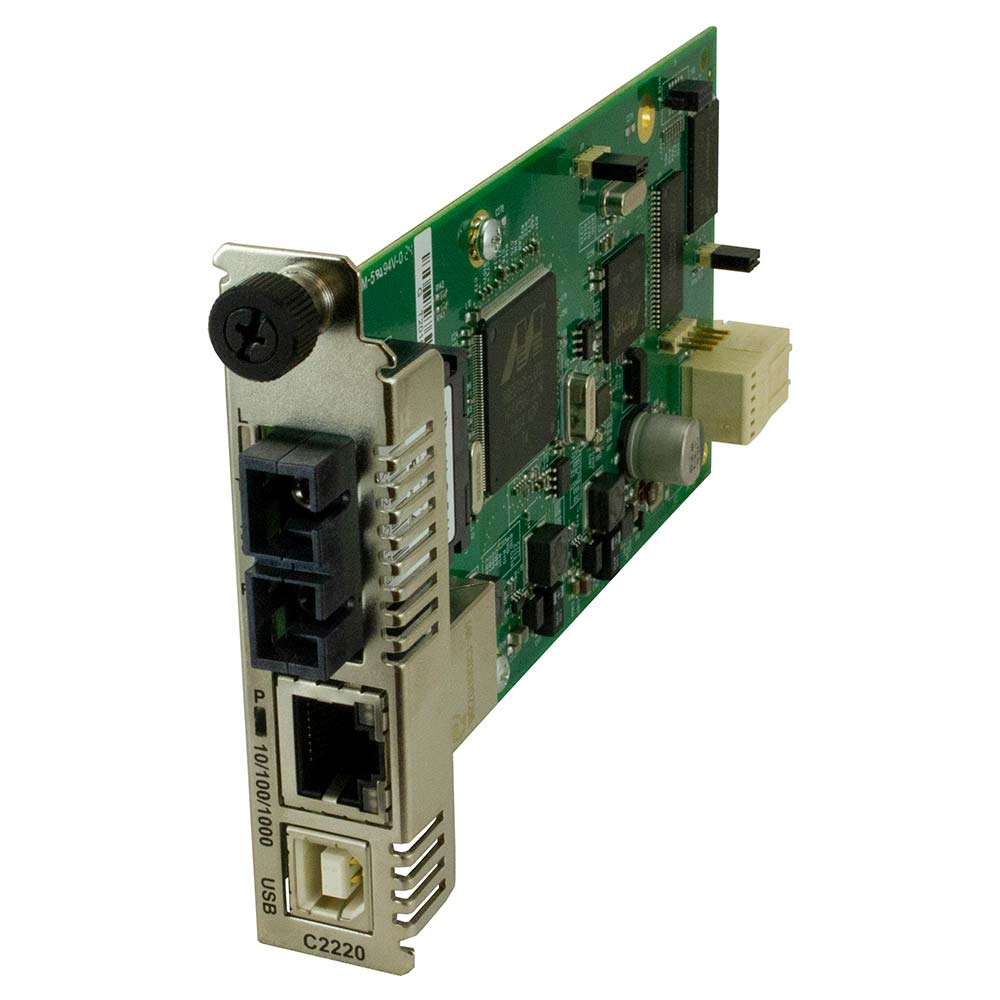

Lantronix C2220-1014 | 10/100b-tx Rj45 To 100b-fx1310nm, Sm, Sc, 20km
Regular price
$1,069.15
Unit price
Brand: Lantronix
|
SKU:
484224
Regular price
$1,069.15
Unit price
Description
Description
The ION C2220 is a managed Network Interface Device (NID) module that provides an interface between 10/100/1000Base-T ports and 100Base-FX ports, allowing users to manage their links while integrating fiber optic cabling into 10/100/1000 copper environments. As a remotely manged device, the C2220 can be managed individually via an IP address or it can be managed by the ION Management Module when installed in a managed ION chassis. With advanced features like IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support, and bandwidth allocation, the C2220 provides various methods for secure delivery of Ethernet services in business and mobile backhaul applications.
Key Features
- MEF 9, 14 + 21 certified
- IEEE 802.3ah Link OAM
- 10K Jumbo Frame Support
- Two selectable Remote management modes:
- IP-Based Remote Management
- In-Band (remote device managed by local peer)
- Auto-MDI/MDIX
- Auto-Negotiation
- Pause
- Link Pass Through
- Far-End-Fault (FEF)
- Remote Loopback
- Field Upgradeable Firmware
- IEEE 802.1p QoS Packet Classification
- IEEE 802.1q VLAN and double VLAN tagging with 4096 VIDs
- DHCP client
- SNTP
- TFTP
- RADIUS client
- RMON counters for each port
- Bandwidth profiling
- DMI Optical Management
- Cable diagnostic function for copper ports
- SSH
- Telnet
- Command Line Interface (CLI)
- Web management
- Focal Point management
- SNMP v1, v2c, and v3
- USB port for basic setup
- Management VLAN
Specifications
Specifications
Specifications
| Standards | IEEE 802.3 IEEE 802.3ah IEEE 802.1p IEEE 802.1Q |
|---|---|
| Data Rate | Copper: 10/100/1000 Mbps Fiber: 100 Mbps |
| Filtering Addresses | 8K MAC Addresses |
| Max Frame Size | 10,240 bytes |
| Dimensions | Width: 0.86” [22 mm] Depth: 6.5” [165 mm] Height: 3.4” [86 mm] |
| Power Consumption | 4.5 Watts |
| Environment | Environment specs are dependent on the chassis chosen Operating: 0°C to 50°C Humidity: 5% to 95% (non-condensing) Altitude: 0 – 10,000 ft. |
| Weight | 1 lb. [0.45 kg] |
| Certifications | EN55022 Class A, EN55024, CE Mark |
| Warranty | Lifetime |
