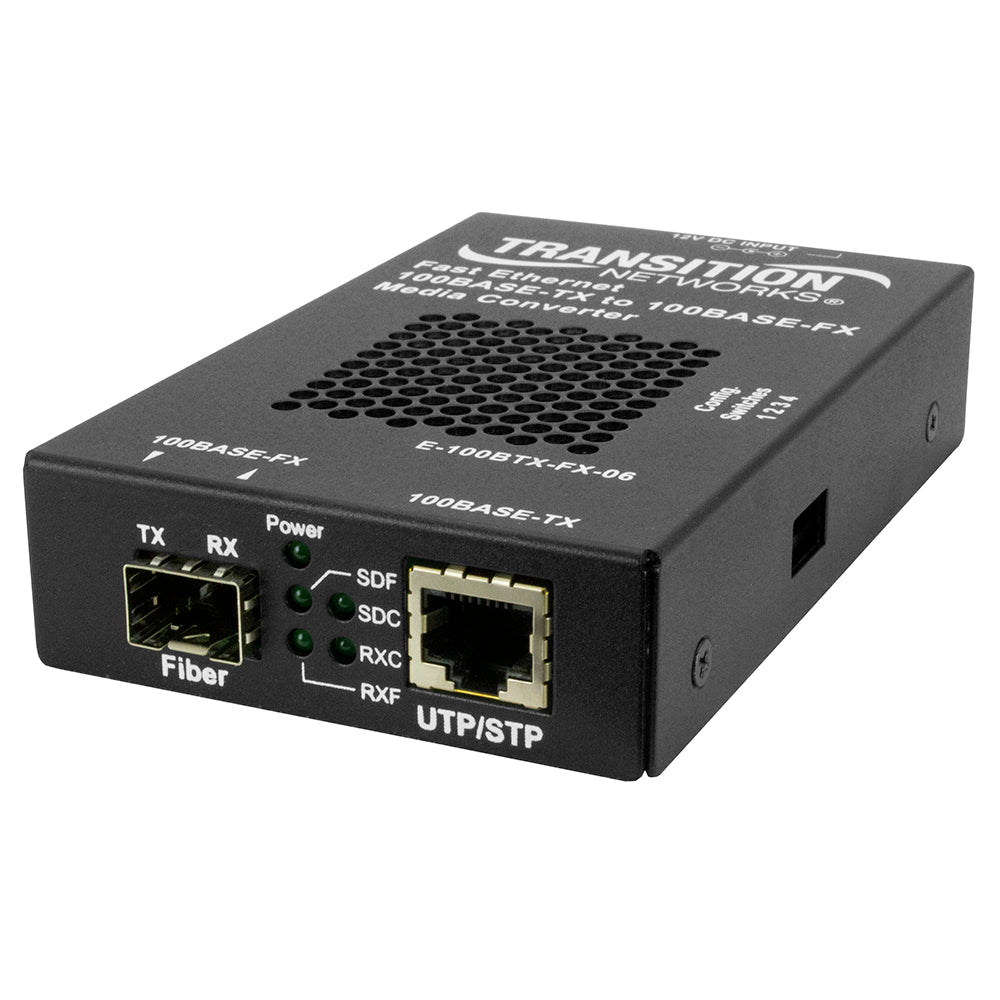

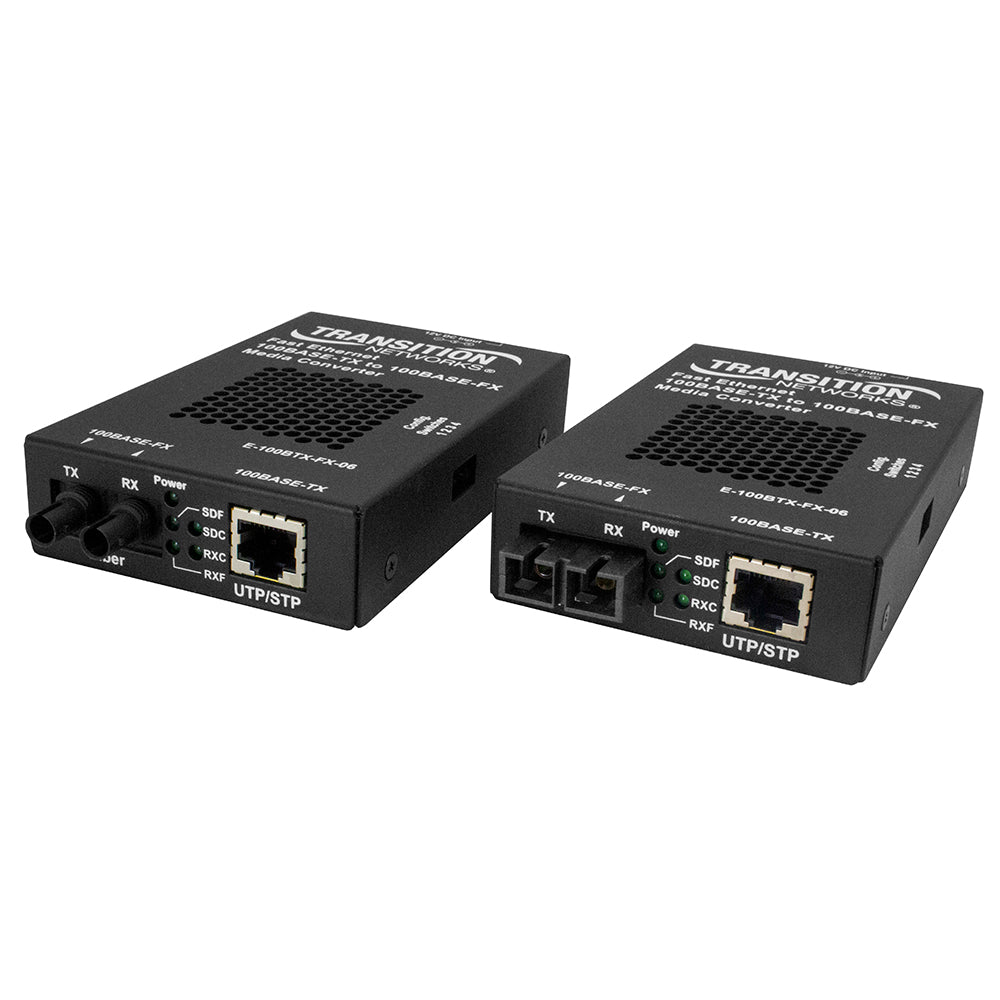

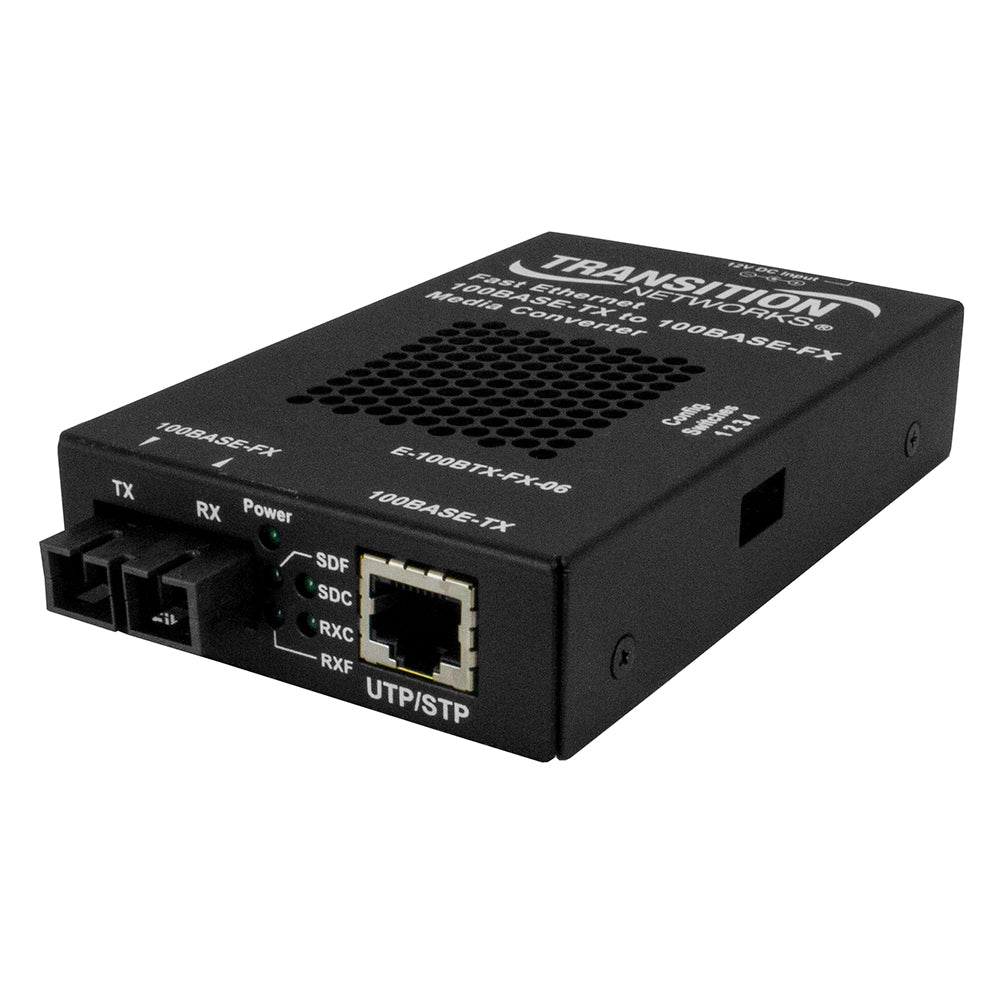

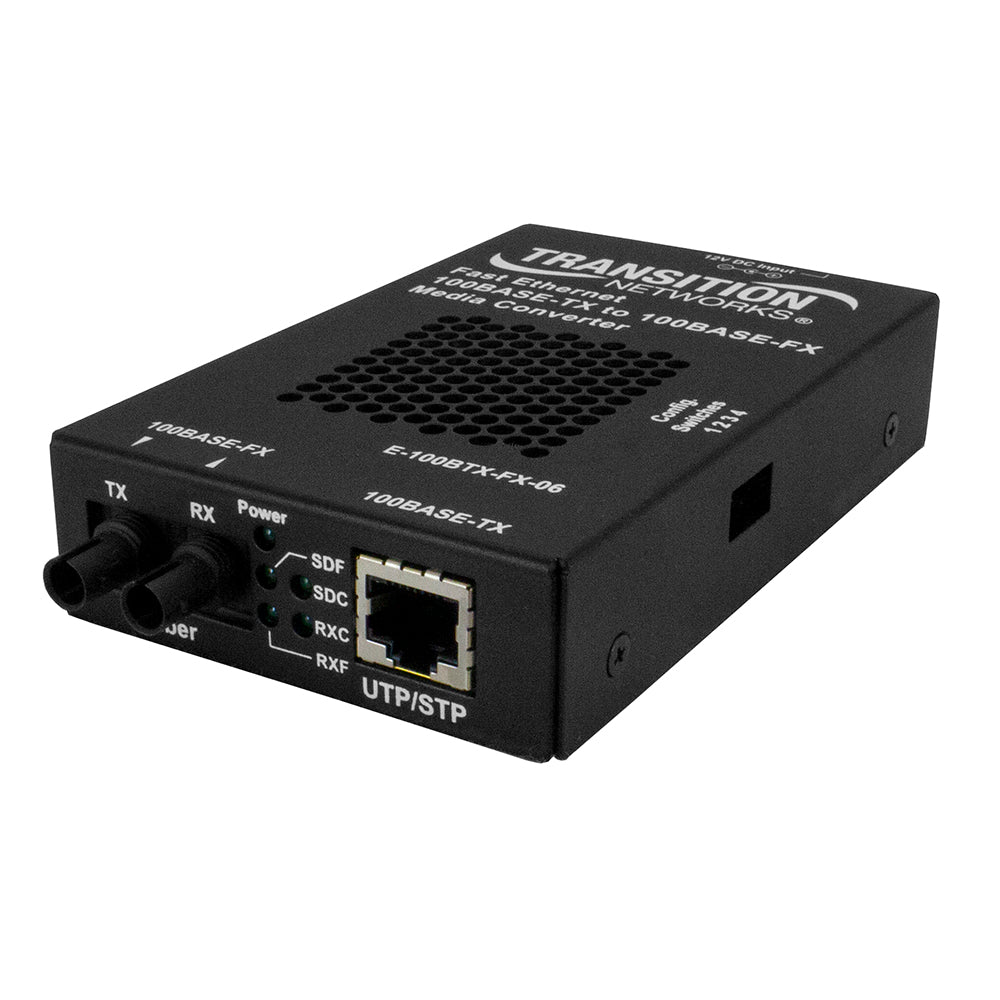

Lantronix E100BTXFX06SMNA | 100base-t Rj-45 To 100base-fx Sm Sc 20km
Regular price
$405.60
Unit price
Brand: Lantronix
|
SKU:
10039017
Regular price
$405.60
Unit price
Description
Description
The E-100BTX-FX-06 is a stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 100Base-TX copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Key Features
- Used in pairs or as a single unit to integrate fiber into a 100base copper environment
- Low latency, layer 1 design
- Auto-negotiation
- Auto-MDI/MDIX
- Active link pass through
- Far-End-Fault (FEF)
- Pause
- Automatic link restoration
- Supports all 100Mbps SFP Modules
Specifications
Specifications
Specifications
| Standards | IEEE 802.3 100Base-FX 100Base-TX |
|---|---|
| Switches | SW1: Auto-Negotiation On/Off SW2: Pause TX On/Off SW3: Active Link Pass Through On/Off SW4: Far-End-Fault (FEF) On/Off |
| Status LEDs | PWR (Power) SDF or LKF (Link Fiber) SDC or LKC (Link Copper) RXF (Receive Fiber) RXC (Receive Copper) |
| Dimensions | Width: 3" [76 mm] Depth: 4.7” [119 mm] Height: 1" [25 mm] |
| Power Supply | External AC/DC required:120-240VAC input, 12VDC Output; unregulated, standard |
| Power Input | 9-14VDC |
| Power Consumption | 1.75 Watts |
| Environment | Operating: 0°C to 50°C Humidity: 5% to 95% (non-condensing) Altitude: 0 – 10,000 ft. |
| Weight | 2 lbs. [0.90 kg] |
| MTBF | Greater than 46,768 hours (MIL?HDBK?217F) Greater than 123,861 hours (Bellcore7 V5.0) |
| Certifications | Regulatory: FCC Class A, EN55024, EN55022 Class A, EN61000, CE Mark |
| Warranty | Lifetime |
