Lantronix OCA-P181610 | Outdoor Cabinet Assembly
Regular price
$979.11
Unit price
Brand: Lantronix
|
SKU:
10091586
Regular price
$979.11
Unit price
Description
Description

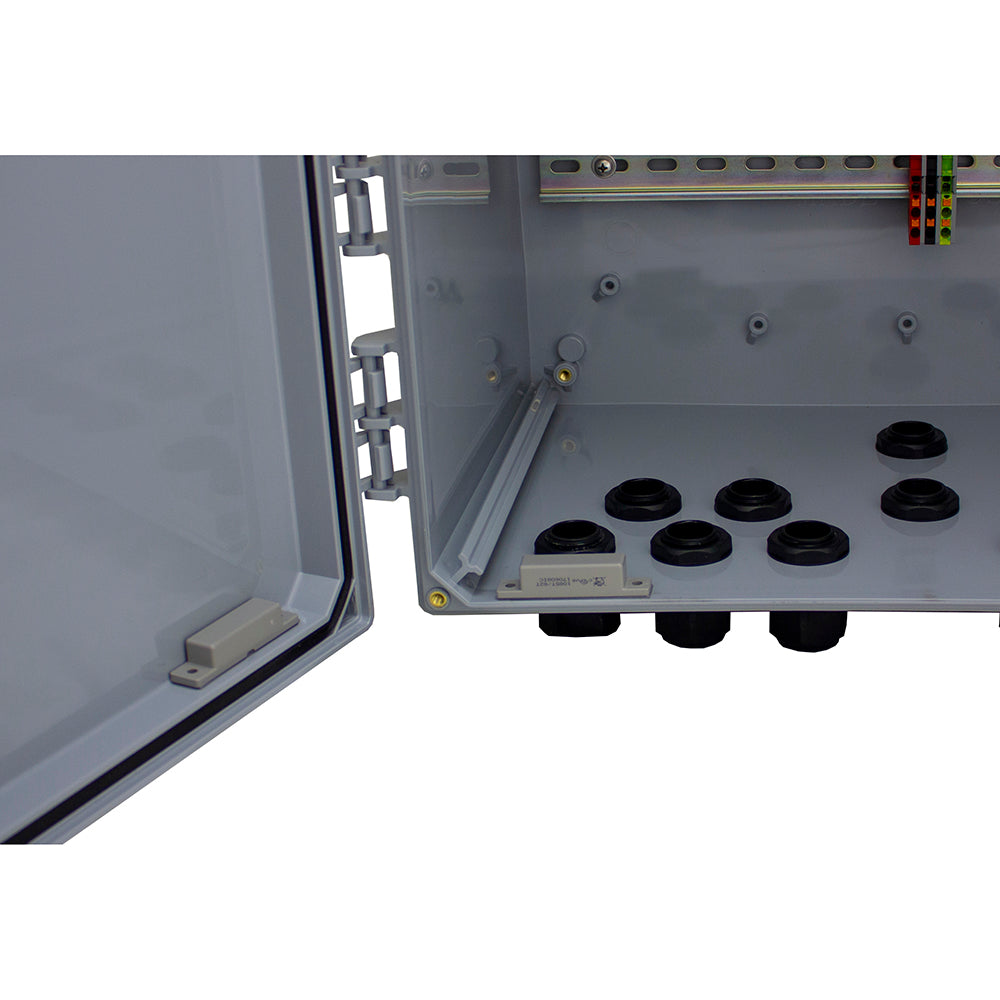

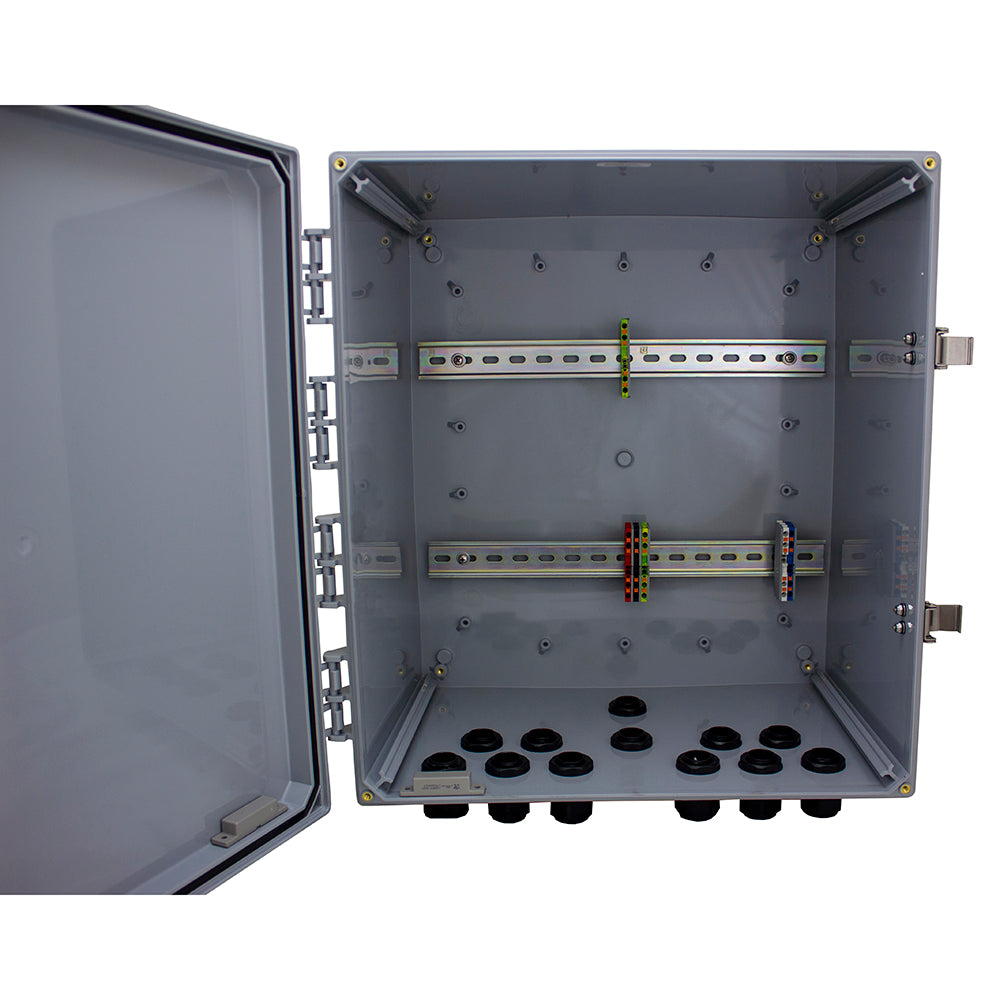

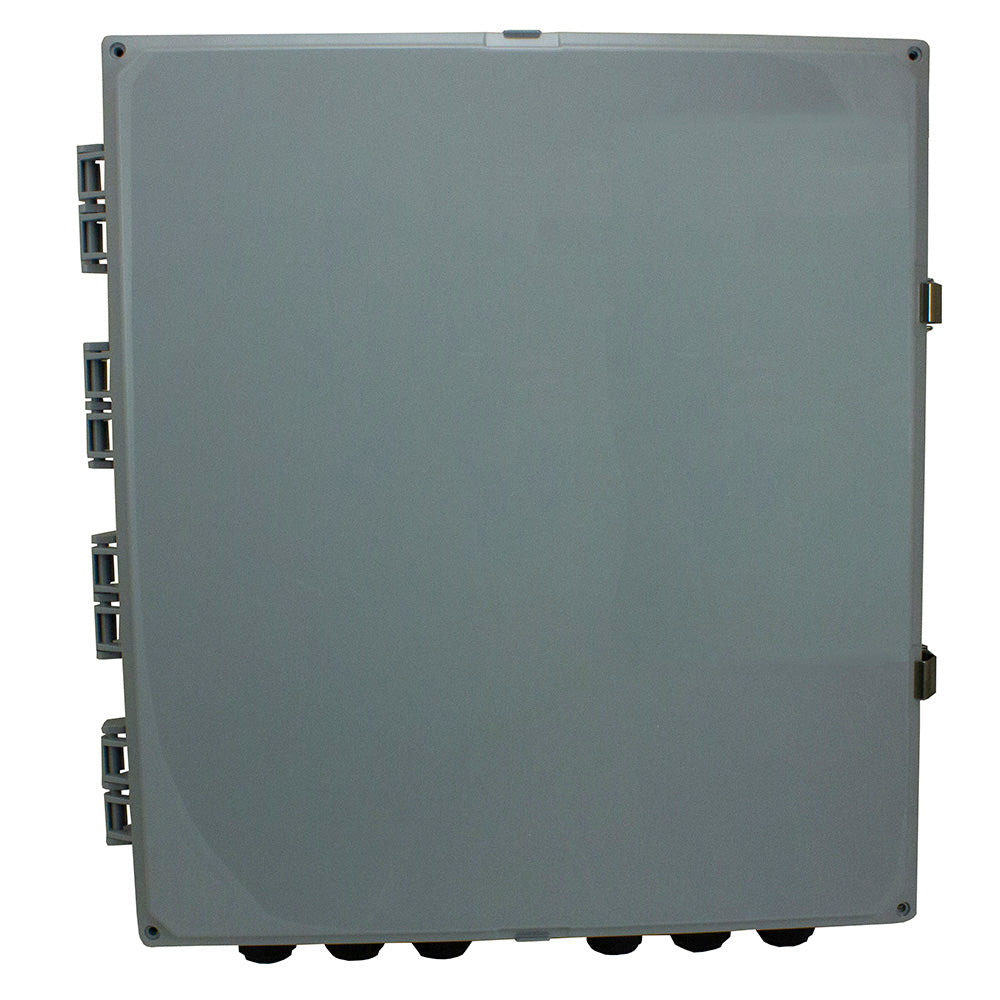

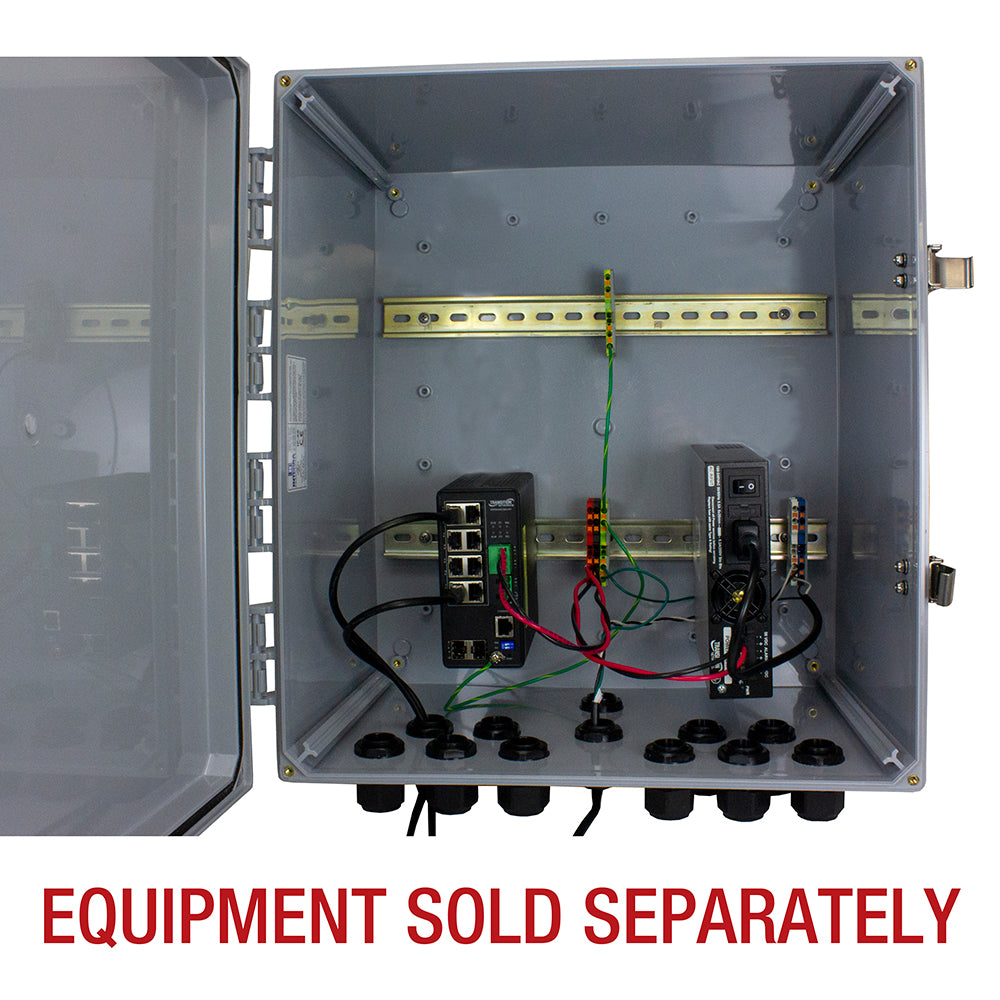

Lantronix ’ Outdoor Cabinet Assembly is a high impact resistant polycarbonate enclosure with a hinged cover that permits a 225° door swing and allows for easy door removal during installation or maintenance. The door is secured by two stainless steel latches that are bolted in place (providing more security than pop rivets or slide-on latches) and can be further secured with pad locks (not included). The 18” x 16” x 10” cabinet is deep enough to protect the bend radius of fiber cables connected to nearly any Lantronix temperature hardened switch when mounted in the enclosure. A liquid tight vent plug is included to prevent condensation inside the enclosure.
Key Features
- Light weight, high impact resistant polycarbonate cabinet
- Wide swing or removable hinge for easy access
- Bolted latches
- Vent to prevent condensation inside enclosure
- Wall or pole mount (optional)
- Enclosure door contact alarm (optional)
- Fiber management trays (optional)
- Wide operating temperature range
- Made in USA
Specifications
Specifications
Specifications
| Dimensions | Width: 16.91” [429.51 mm] Depth: 11.5” [292.1 mm] Height: 19.69” [500.13 mm] |
|---|---|
| Weight | 15.15 lbs. [6.87 kg] |
| DIN Rails | (2) 35mm DIN (1.39" x 15") |
| Instrumented Dart Impact @ 73°F | 565 in lb |
| Deflection Temperature @ 264 psi | 270°F |
| Modulus of Elasticity | 34 ksi |
| Tensile Strength Temperature Range | -40 to 265°F |
| Environment | Operating: -40° to +70°C (inside enclosure) External Operating: -40°C to +50°C |
| Flame Rating – UL 94 | 5VA |
| Outdoor UV Exposure – UL | F1 |
| Certifications | Consists of UL compliant components Cabinet UL 50/cUL listed File E229365/E207562; NEMA 4X/IP66 Vent plug UL/cUL recognized File E330194; approved for use in IP65/67/68 applications Wire glands UL/cUL recognized File E51579; approved for NEMA 4, 4X, 6 and 6P applications Ground terminal blocks UL/cUL recognized File E 60425 |
| UNSPSC Code | 39120000 |
