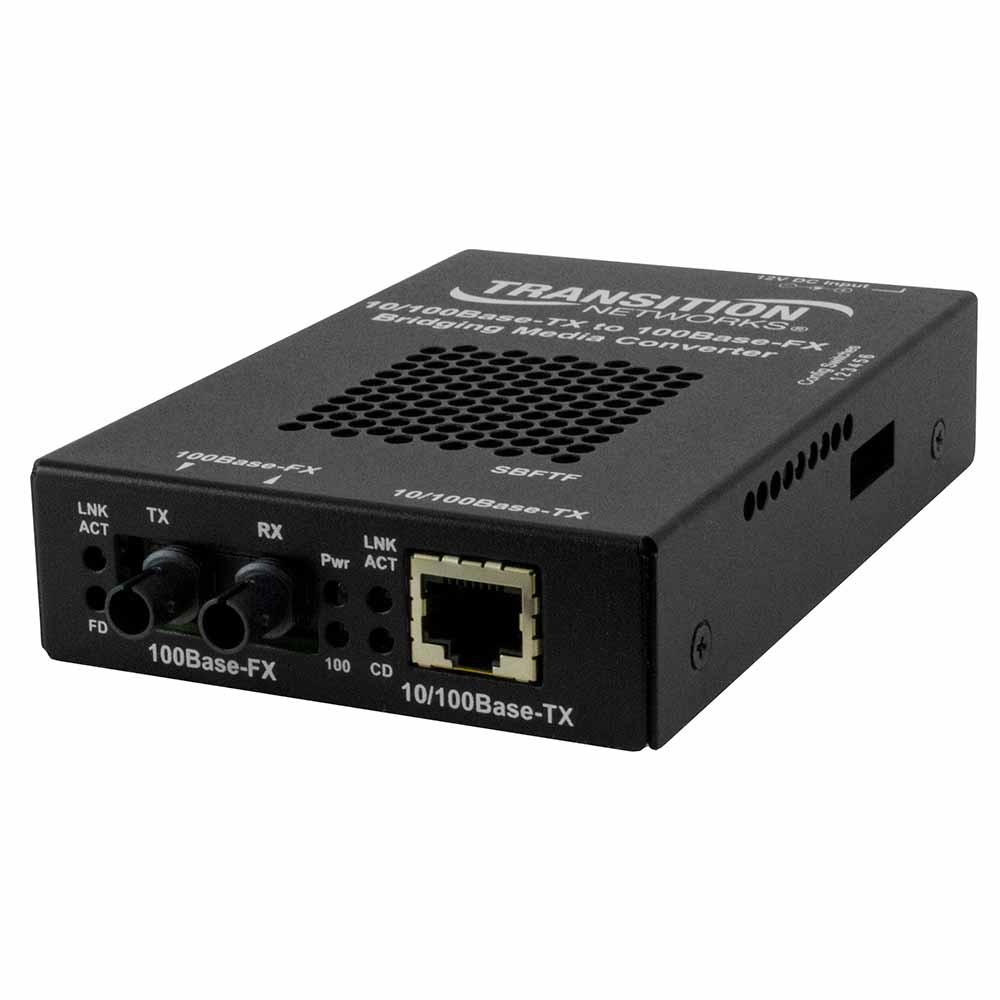

Lantronix SBFTF1011105NA | Ethernet Media And Rate Converter, 10/100base-tx To 100base-fx, Multimode, St, Rj45, 12 Volt Dc, 0.8 Ampere, 3.25 Width X 4.8 Depth X 1 Height
Regular price
$291.93
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lantronix SBFTF1011105NA | Ethernet Media And Rate Converter, 10/10...
Regular price
$291.93
Unit price
Brand: Lantronix
|
SKU:
375565
Regular price
$291.93
Unit price
Description
Description
The SBFTF Series is a stand-alone media converter that provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 10/100 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber.
Key Features
- Auto-Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Far-End-Fault (FEF) Detection
- Automatic Link Restoration Extend network distance up to 120km
- Bridging devices will provide conversion and integration solutions for half and full-duplex environments
- 10 Mbps or 100 Mbps on TP port
- Half or full-duplex on all ports including fiber
Specifications
Specifications
Specifications
| Standards | IEEE 802.3 |
|---|---|
| Data Rate | 10 Mbps; 100 Mbps, Layer 2 |
| Filtering Addresses | 1K MAC addresses |
| Filtering & Forwarding | 14,880 pps for Ethernet; Rate 148,800 pps for Fast Ethernet |
| RAM Buffer | 512 KB |
| Max Packet Size | 2044 bytes untagged; 2048 bytes tagged |
| Switch | SW1 (TP): Auto-Negotiation On/Off SW2 (TP): Half or Full-duplex with Auto-Negotiation Off SW3 (TP): 10Mbps or 100 Mbps with Auto-Negotiation Off SW4 (Fiber): Half or Full-duplex SW5: Link Pass Through On/Off SW6: Far-End-Fault (FEF) On/Off |
| Status LEDs | PWR (Power): ON = connection to external power FD (Fiber Duplex): ON=Full-duplex; Off=Half duplex LNK/ACT (Fiber Link/Activity): ON=Link; Blinking=Activity CD (Copper Duplex): ON = Full-duplex; Off = Half-duplex LNK/ACT (Copper Link/Activity): ON = Link; Blinking = Activity 100 (Copper): Off = 10 Mbps; ON = 100 Mbps |
| Dimensions | Width: 3.25” [82.55 mm] Depth: 4.8” [121.92 mm] Height: 1" [25 mm] |
| Power Supply | External AC/DC; 12 VDC, 0.8A min |
| Environment | Operating: 0°C to 50°C Humidity: 5% to 90% (non-condensing) Altitude: 0 – 10,000 ft. |
| Weight | 2 lbs. [0.90 kg] |
