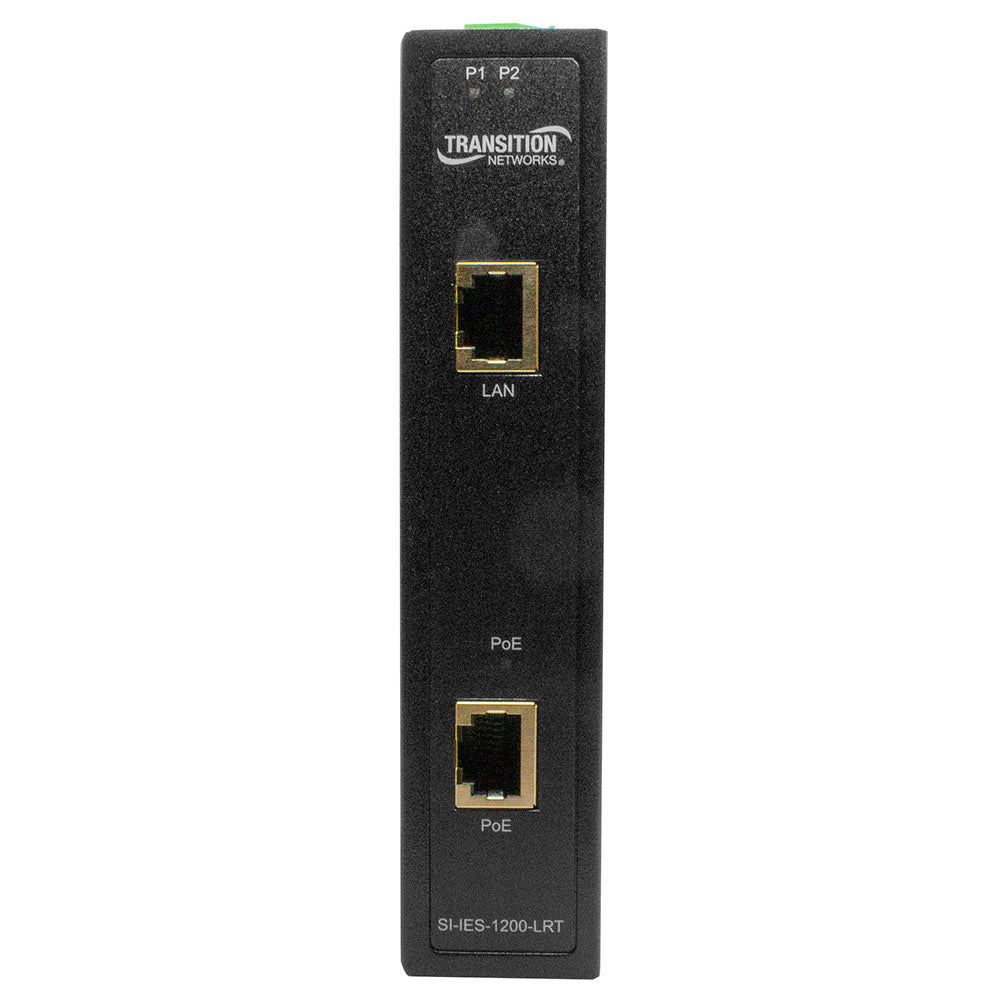

Lantronix SI-IES-1200-LRT | Unmanaged Hardened PoE+ Injector
Regular price
$157.41
Unit price
Brand: Lantronix
|
SKU:
551934
Regular price
$157.41
Unit price
Description
Description
The SI-IES-1200-LRT is a (2) port unmanaged hardened PoE+ injector that adds up to 30 Watts of power on a network segment.
Key Features
- IEEE 802.3at PoE+ to supply 30 Watts
- Supports IEEE 802.3af
- Non-blocking architecture
- Compact size
- IP30 housing protection
- Link Pass Through
- Extended operating temperature (-40°C to 75°C)
- DIN Rail mount / optional wall mount brackets included
Specifications
Specifications
Specifications
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3at IEEE 802.3af |
|---|---|
| Connectors | (1) DATA IN RJ-45 Ethernet Port (1) DATA OUT PoE+ RJ-45 Ethernet Port 30 Watts |
| Data Rate | 10/100/1000 Mbps |
| Status LEDs | PWR1 (Power): ON=primary power connected PWR2 (Power): ON=backup power connected |
| Dimensions | Width: 1.2” [30 mm] Depth: 3.7” [95 mm] Height: 5.5” [140 mm] |
| Power Consumption | 3.53 Watts (No PoE) 33.36 Watts (1 port PoE) |
| Power Input | 24-48VDC |
| Ingress Protection | IP30 |
| Environment | Operating: -40°C to 75°C Storage: -40°C to 85°C Humidity: 5% to 95% (non-condensing) Altitude: 0 – 10,000 ft. |
| Weight | 1.3 lbs. [0.59 kg] |
| MTBF | 8,371,781 hours Bellcore Ground Benign, Controlled; Temp. 30°C 4,185, 891 hours Bellcore Ground Fixed, Uncontrolled; Temp. 30°C |
| Certifications | Safety: UL508 FCC Class A, CE Mark, EN61000-4, EN61000-6-2, EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6(CS) EN61000-4-8 (Magnetic Field), IEC60068-2-27(Shock), IEC60068-2-32 (Free fall), IEC60068-2-6 (Vibration) |
| Number of Ports | 1 PORT |
| Type | MIDSPAN |
| UNSPSC Code | 43222600 |
