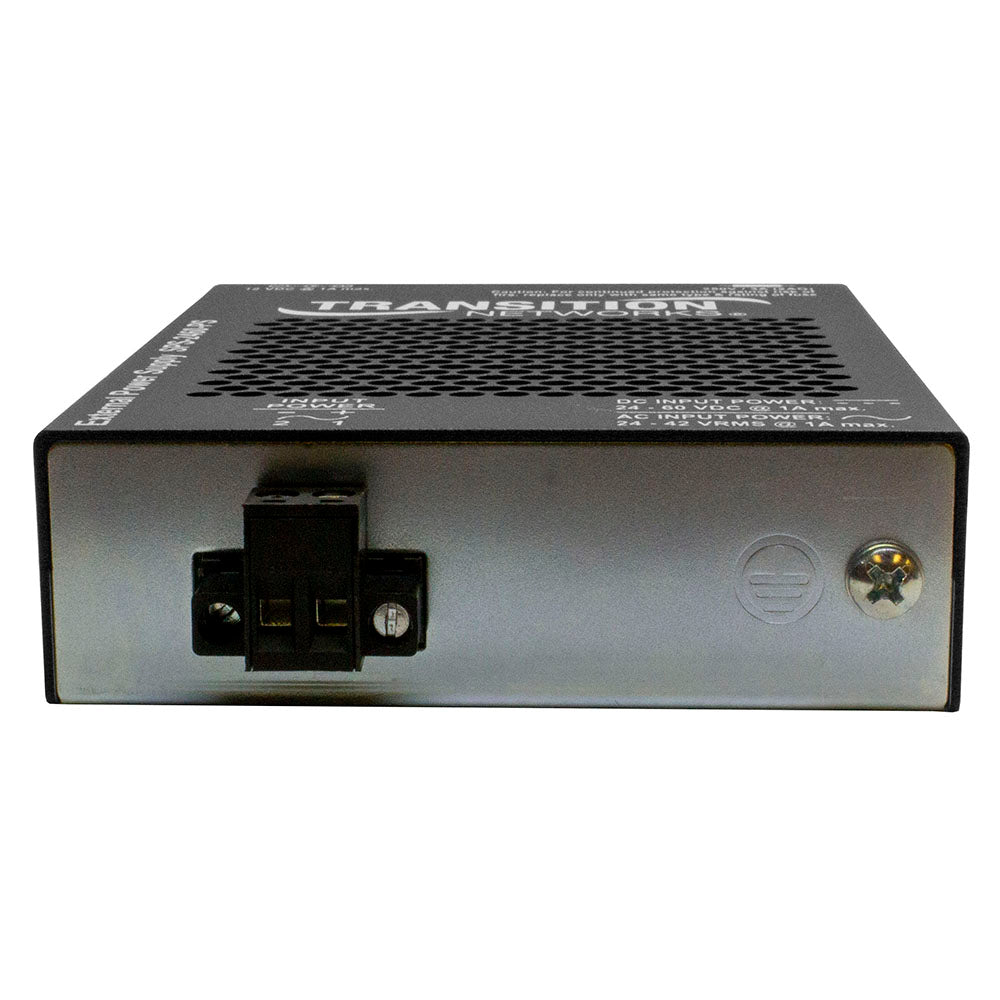

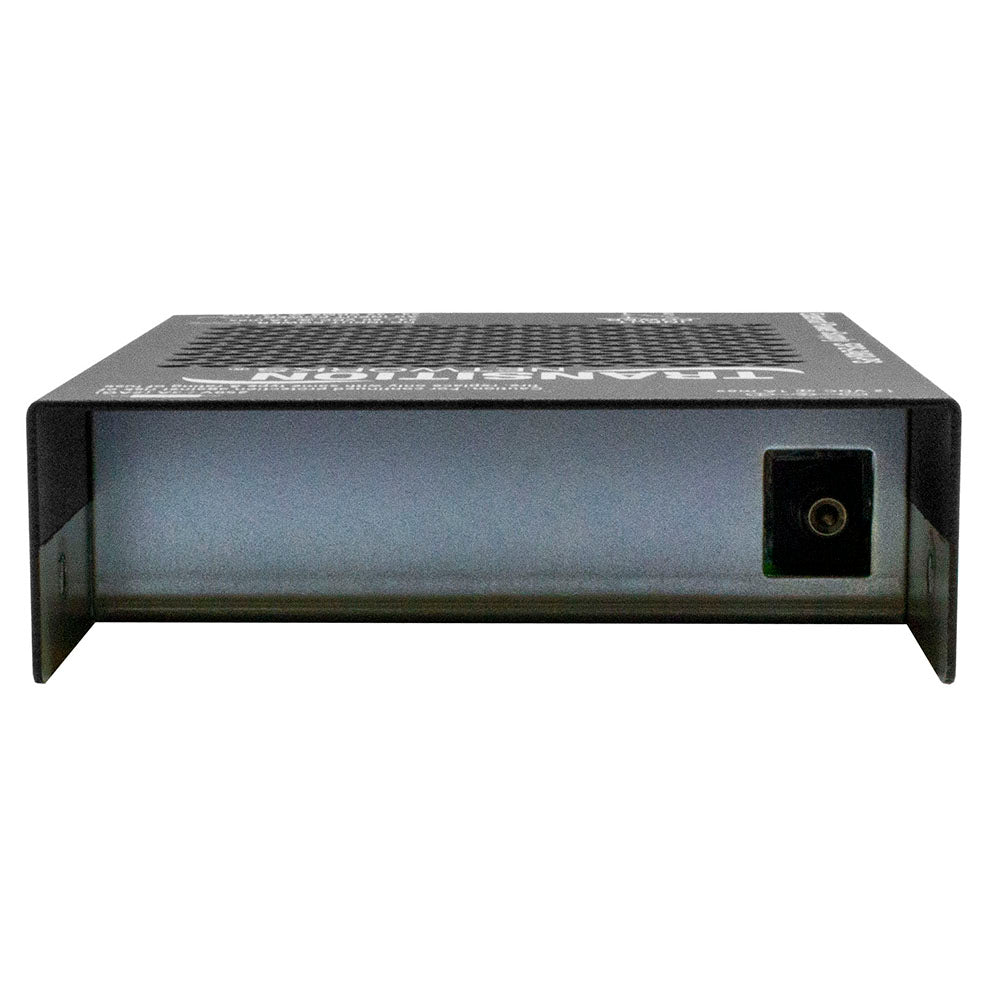

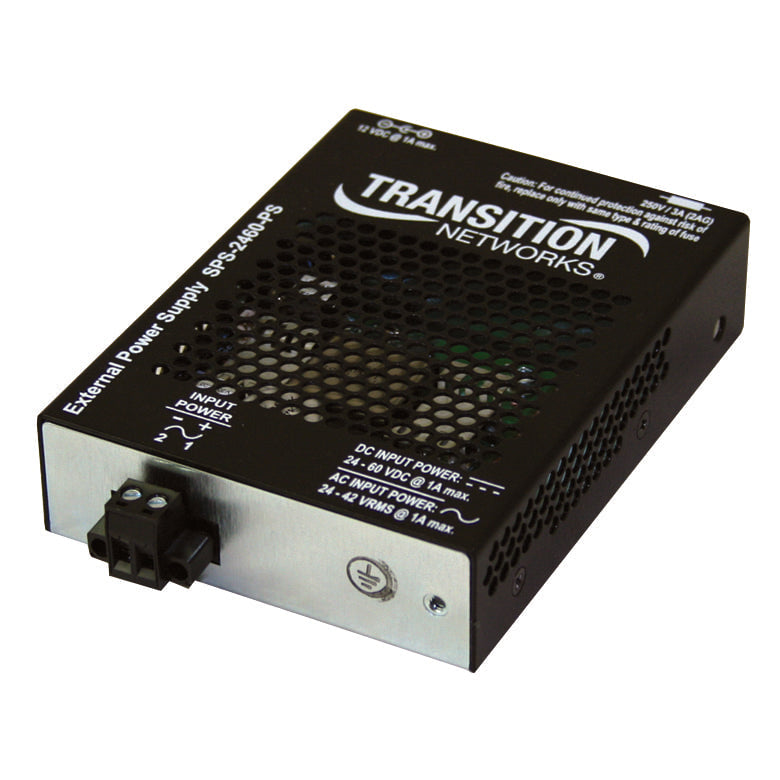

Lantronix SPS-2460-PS | Piggy-Back Power Supply
Regular price
$239.96
Unit price
Brand: Lantronix
|
SKU:
442723
Regular price
$239.96
Unit price
Description
Description
Lantronix ’ wide input external power supplies allow you to provide a wide range of input voltages to power your stand-alone converters and chassis. Input voltages of 24 – 60 VDC and 24 – 42 VRMS allow for installation of any of Lantronix ’ stand-alone media converters in most industrial, telecom and commercial applications, as well as HVAC and building controlled environments.
Specifications
Specifications
Specifications
| Power Output | Voltage: 12.25 VDC Current: 1.0A Load Regulation: ±5% at 10% load to full rated load Noise and Ripple: ±40 mV peak-to-peak of output voltage |
|---|---|
| Power Input | Voltage: 24 – 60 VDC; 24 – 42 VMRS Efficiency: 80% (typical) |
| Isolation Voltage | (Dielectric withstand) Meets IEC 950 for one minute 1500 VAC: Output/Input 1500 VAC: Input/Safety GND 1500 VAC: Output/CASE |
| Protection | Over Load Protection (OLP): When the average power rating exceeds 125%-150% of maximum power, output voltages reduced to a safe dissipation level; protects against short circuit of any output No Load Protection: No damage to power supply when operating at no load Transient Protection: No voltage spike at power-on, power-off, or power failure |
| Dimensions | Width: 4.5” [114 mm] Depth: 3.4” [86 mm] Height: 1" [25 mm] |
| Power Consumption | 3 Watts (max) @ 24 VDC input, 12.25 VDC output |
| Environment | Operating: -20°C to 65°C Storage: -40°C to 85°C Humidity: 5% to 95% (non-condensing) Altitude: 0 – 10,000 ft. |
| Weight | 1 lb. [0.45 kg] |
| MTBF | Greater than 250,000 hours (MIL-HDBK-217E) |
| Certifications | CISPR/EN55022, Class A, FCC Class A |
| Warranty | Lifetime |
| Device | MEDIA CONVERTERS |
| UNSPSC Code | 43201553 |
