Lapp Group 4160402 | Multi-Standard Cable, Tinned Copper, 450\/750V...
Regular price
$459.32
Unit price
Brand: Lapp Group
|
SKU:
OLF-4160402
Regular price
$459.32
Unit price
Description
Description

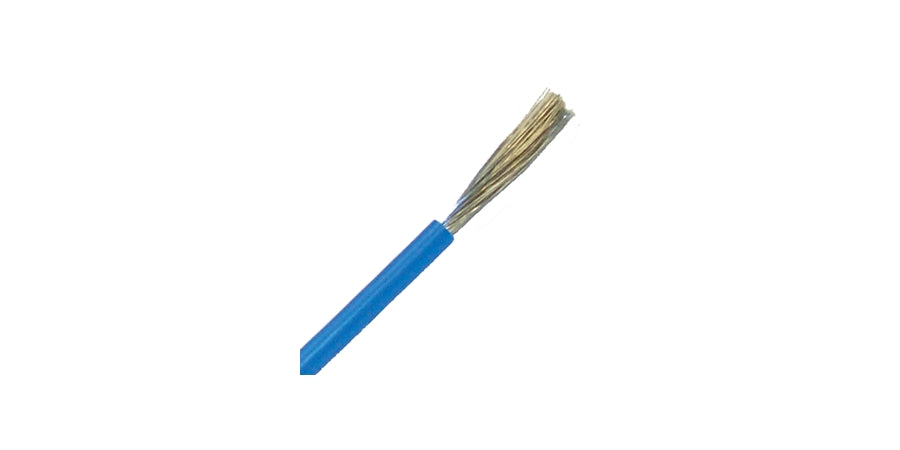

Lapp Group 4160402 | Multi-Standard Cable, Tinned Copper, 450\/750VAC, 16AWG
Multi-Standard Cable; Blue; 450 to 750 V, 600 V; 16 AWG; Stranded; 1; Tin-Plated Copper; 3.1mm Nominal Outside Diameter; 30 Str; 12.4mm; PVC Insulation; -40 to +70 C
Specifications
Specifications
Lapp Group - 4160402 - Product Categories
- Electronic Wire and Cable
- Hook Up, Lead Wire and Automotive Wire
- Hook Up and Lead Wire
Lapp Group - 4160402 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | 4160402 |
| Approval Listings | Ul, Ce, Csa |
| Item Description | Multi-Standard Cable, Tinned Copper, 450\/750VAC, 16AWG |
| Csa | Csa Type Tew |
| Conductor Material | Tinned Copper |
| Conductor Size | 16 Awg |
| Conductor Stranding | 30 Strands Per Conductor |
| Insulation Color | Blue |
| Insulation Material | Pvc |
| Jacket Color | Blue |
| Outside Diameter | 0.122 In. (3.1 Mm) |
| Package Type | Ring |
| Shield Type | Unshielded |
| Special Rating | Ul Type Awm, Style 1015 |
| Temperature Rating | -40° To 70°C (-40° To 158°F) |
| Voltage | 450/750 Vac |
