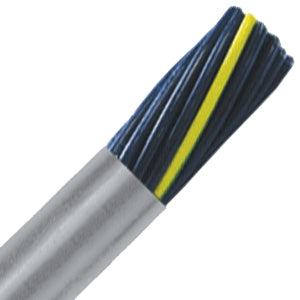

Lapp Group 601604 | Flexible Power and Control Cable, Bare Copper, Gray, Thermoplastic Polymer, 600V, 16 AWG
OLFLEX 190 is a multi-conductor cable with a highly oil-, coolant-, and solvent-resistant thermoplastic polymer jacket for control and power applications in an industrial environment. it is designed for use in all electrical equipment under dry, damp, and wet conditions. OLFLEX 190 is also UL TC approved so it can be routed in tray as well.
Lapp Group - 601604 - Features
- Extremely oil-resistant (Oil Res I & II)
- Meets NFPA 79 machinery wiring standard
- Very flexible and number-coded for easy routing and termination
- Round jacket for optimal seal with a SKINTOP strain relief cable gland
- Resistant to a wide range of disinfecting solutions used in the food, beverage, chemical and related industries, according to ECOLAB PM 40-1 test procedure
Specifications
Specifications
Lapp Group - 601604 - Product Categories
- Electrical Wire and Cable
- Portable Cord and Flexible Cable
- Flexible Cable
- Other Flexible Cable
Lapp Group - 601604 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | 601604 |
| Conductor Count | 4 Conductor |
| Item Description | Flexible Power and Control Cable, Bare Copper, Gray, Thermoplastic Polymer, 600V, 16 AWG |
| Conductor Material | Bare Copper |
| Conductor Size | 16 Awg |
| Conductor Stranding | 28 Strands Per Conductor |
| Conductor Type | Stranded |
| Insulation Color Code | Black And White With Numbers |
| Insulation Material | Pvc-Polyvinyl Chloride |
| Jacket Color | Gray |
| Jacket Material | Pvc-Polyvinyl Chloride |
| Jacketing Material | Thermoplastic Polymer |
| Shield Type | Unshielded |
| Stranding | 28 Strands In Each Conductor |
| Temperature Rating | 90°C (194°F) |
| Voltage | 600 V |
