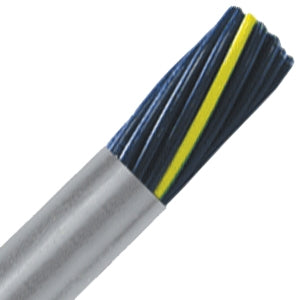

Lapp Group 602012 | Multiconductor Cable, Bare Copper, 12 Conductors, Thermoplastic Polymer, Gray, 600V, 20 AWG
Regular price
$3,028.83
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Lapp Group 602012 | Multiconductor Cable, Bare Copper, 12 Conductor...
Regular price
$3,028.83
Unit price
Brand: Lapp Group
|
SKU:
2FL-2012O
Regular price
$3,028.83
Unit price
Description
Description
Lapp Group 602012 | Multiconductor Cable, Bare Copper, 12 Conductors, Thermoplastic Polymer, Gray, 600V, 20 AWG
–LFLEX190 is a multi-conductor cable with a highly oil-, coolant-, and solvent-resistant thermoplastic polymer jacket for control and power applications in an industrial environment. It is designed for use in all electrical equipment under dry, damp, and wet conditions. –LFLEX 190 is also UL TC approved so it can be routed in tray as well
Lapp Group - 602012 - Features
- Extremely oil-resistant (Oil Res I & II)
- Meets NFPA 79 machinery wiring standard
- Very flexible and number-coded for easy routing and termination
- Round jacket for optimal seal with a SKINTOP strain relief cable gland
- Resistant to a wide range of disinfecting solutions used in the food, beverage, chemical and related industries, according to ECOLAB PM 40-1 test procedure
Specifications
Specifications
Lapp Group - 602012 - Product Categories
- Electrical Wire and Cable
- Portable Cord and Flexible Cable
- Flexible Cable
- High Flex and Robotic Cable
Lapp Group - 602012 - Specifications
| Manufacturer Name | Lapp Group |
|---|---|
| Manufacturer Part Number | 602012 |
| Conductor Count | 12 Conductor |
| Item Description | Multiconductor Cable, Bare Copper, 12 Conductors, Thermoplastic Polymer, Gray, 600V, 20 AWG |
| Conductor Material | Bare Copper |
| Conductor Size | 20 Awg |
| Conductor Stranding | 10 Strands Per Conductor |
| Conductor Type | Stranded |
| Insulation Color Code | Black And White With Numbers |
| Insulation Material | Pvc |
| Jacket Color | Gray |
| Jacket Material | Pvc |
| Jacketing Material | Thermoplastic Polymer |
| Product Type | Flexible Power And Control Cable |
| Shield Type | Unshielded |
| Temperature Rating | -25° To 90°C (-13° To 194°F) |
| Voltage | 600 |
