Brand: Legrand
|
SKU:
975513

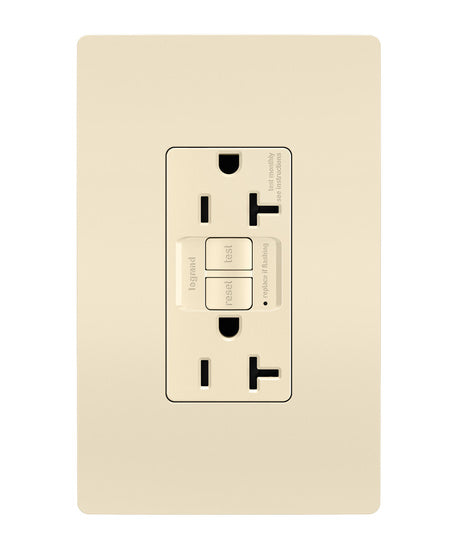

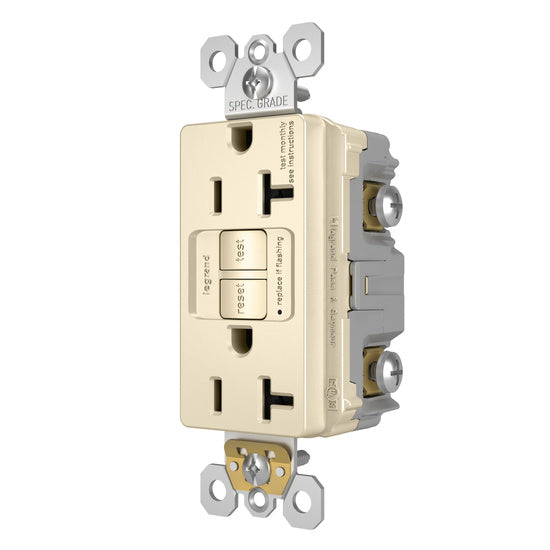

Legrand 2097-LA | Radiant Collection | Radiant Spec-Grade 20A Self-Test GFCI Receptacle, Light Almond
Regular price
$38.39
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Legrand 2097-LA | Radiant Collection | Radiant Spec-Grade 20A Self-...
Regular price
$38.39
Unit price
Brand: Legrand
|
SKU:
975513
Regular price
$38.39
Unit price
Description
Description
GFCI receptacles from the radiant Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection, GFCI receptacles make it easier to recognize and fix trips right where they happen – no more confusion at the breaker box. 20A outlets are ideal for use with larger appliances, as well as to meet regional requirements (Chicago, Canada). GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation. Made exclusively for use with screwless Wall Plates from the radiant Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.
Features
- Part of the radiant: collection
- Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the trip indicator light (red LED) flashes to signal that the GFCI should be replaced
- Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box
- Feed-thru wiring configuration allows GFCI to protect downstream receptacles
- Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly

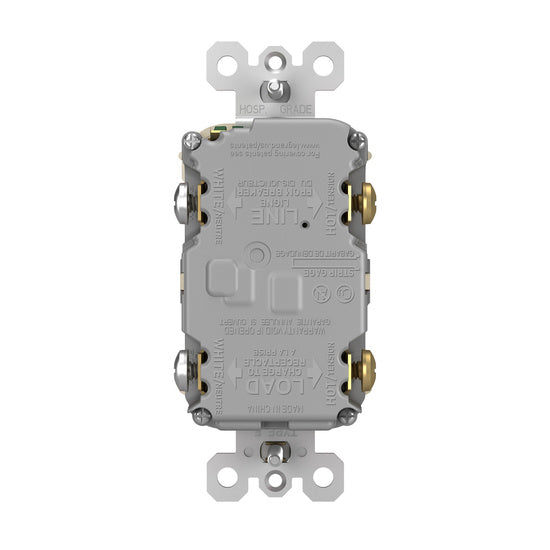

- Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire and two back wire holes per terminal
- Mounting screws are shipped captive in the device and wall plate for easier installation
- Dual-direction test and reset button colors match the device face
- Supplied with matching TP wall plate
- 10kA short circuit rating
- 20 Amp feed-thru capacity
Specifications
Specifications
General Info
| Color | Light Almond |
|---|---|
| UPC Number | 785007036480 |
| Country Of Origin | China |
| Product Line | Pass and Seymour |
| Application Sector | Residential/Commercial |
| Standard | cULus, UL Listed, FSUL |
Additional Information
| Product Environmental Profile | Yes |
|---|
Listing Agencies / 3rd Party Agencies
| cULus Listed | Yes |
|---|
Technical Information
| Number of Poles | Double Pole |
|---|---|
| Voltage | 125 V |
| Trip Range | 4 to 6 mA |
| Connection | Back and Side Wire |
| Frequency Rating | 60 Hz |
| Interrupt Rating | 4 A |
| Environmental Conditions | 95% Humidity, UL 94 V2 |
