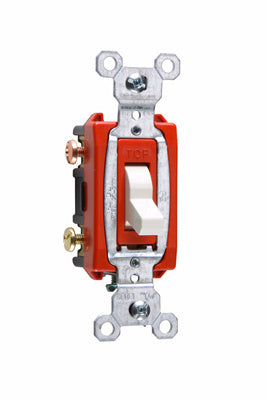

Legrand CS20AC3W | Pass and Seymour | Commerical Specification Grad...
Regular price
$9.18
Unit price
Brand: Legrand
|
SKU:
950452
Regular price
$9.18
Unit price
Description
Description
Commercial 3way Switch, Side Wire, 20amp 120/277volt, Gray.
Features
- One-piece brass alloy contact arm for reliable electrical performance.
- One-piece steel strap with integral ground is plated for corrosion resistance.
- High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse.
- Heavy-duty toggle bumpers for smooth and quiet operation.
- Back body made of glass-reinforced nylon. Locking support provides resistance to face and back body separation.
- Available with side wire or external screw-pressure-plate back and side wire models capable of accepting #14 - #10 AWG copper or copper-clad wire.
- Cam designed for fast make with positive break action to minimize arcing and prolong switch life.
- Oversized silver alloy contacts for longer dependable switch life.
- Tri-drive terminal and mounting screws.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Specifications
Specifications
General Info
| Color | White |
|---|---|
| UPC Number | 785007126556 |
| Country Of Origin | Mexico |
| Product Line | Pass and Seymour |
| Application Sector | Commercial |
| Standard | UL 498/20 |
Listing Agencies / 3rd Party Agencies
| cULus Listed | Yes |
|---|---|
| cULus ListingNumber | 140597 |
Technical Information
| Number of Poles | 3-Way |
|---|---|
| Voltage | 120 V |
| Actuator | Toggle |
| Contact Rating | 20Amp, 120/277Vac |
| Action | Three pole |
