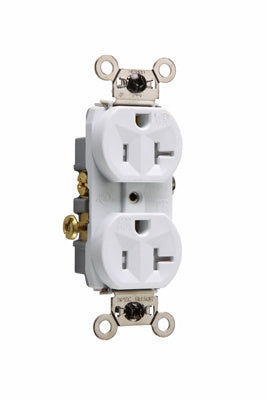

Legrand WR20TRW | Pass and Seymour | Weather-Resistant Commercial Grade Receptacles, White
Regular price
$16.64
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Legrand WR20TRW | Pass and Seymour | Weather-Resistant Commercial G...
Regular price
$16.64
Unit price
Brand: Legrand
|
SKU:
950414
Regular price
$16.64
Unit price
Description
Description
Weather-Resistant Commercial Grade Receptacles, 20 amp, 125 volts, Ivory, WR20TRI
Features
- Auto-ground clip assures positive ground.
- WR marking on face as required by UL Standard.
- Zinc-plated steel mounting screws for greater ease of installation and removal in wet or damp locations.
- Strap tabs wrap around face to prevent strap from separating from face and back body.
- Tri-drive brass terminal screws. Internal screwpressure plate back and side wire capability. Two back wire holes for more wiring flexibility.
- Heavy-duty, brass strap for added strength and ground conductivity.
- UV-resistant nylon face for longer life under adverse environmental conditions.
- Two drive screws anchor strap to backbody and face where abrupt removal torque is strongest.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- .032 inch thick brass triple-wipe power contacts for lasting retention.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Specifications
Specifications
General Info
| Color | White |
|---|---|
| UPC Number | 785007242577 |
| Country Of Origin | Mexico |
| Product Line | Pass and Seymour |
| Application Sector | Commercial |
| Standard | UL498, CSA C22.2 No. 42 |
Listing Agencies / 3rd Party Agencies
| cULus Listed | Yes |
|---|---|
| cULus ListingNumber | 140596 |
Technical Information
| Number of Poles | Double Pole |
|---|---|
| Voltage | 125 V |
| Connection | Side wire |
| Dielectric Strength | Withstands 1500V minimum |
| Temperature Rating | Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact |
| Wire Size | #14 - #10 |
| Number of Wires | 3 |
| Environmental Conditions | Flammability: UL94 V2 |
