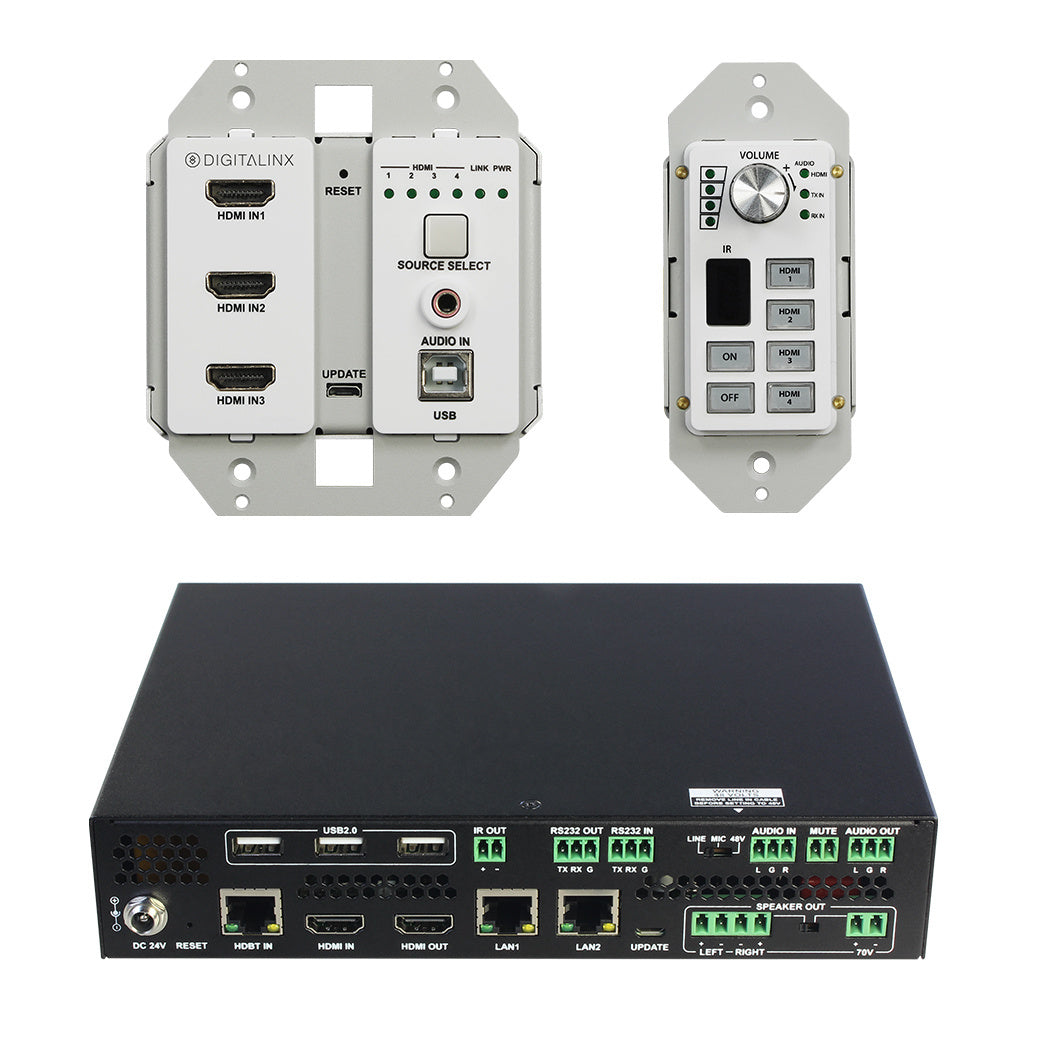

Liberty AV DL-ARK-4HC | DigitaLinx "ARK" Series Three Piece HDMI & USB Room Kit

Liberty AV - DL-ARK-4HC - Features

• System Includes input plate, system control plate, receiver/processor, power supply, mounting tabs for RX, white and black cover & face plates, button lables
• Input plate offers 3 HDMI, USB-B, and separate pass-through audio. (Input 4 is on RX) HDBaseT output up to 70m to receive unit. HDCP2.2 compliant
• Receiver offers HDMI input for local devices, HDBT in, HDMI output with 4K scaling, 70v / 8ohm amp, line / mic in w/ selectable phantom power, audio out, USB2.0 high speed 3 port hub, HDMI out, 2 LAN ports, mute relay, RS232 port, IR port
• Input plate and control plate ship with white and black face and cover plates
• Input 4 (HDMI) located on receiver unit to be used for remote BYOD and other sources located near the display
• System can be programmed to power on/off connected display/projector via RS232, IR, or CEC
• IR on control plate acts as IR repeater using flasher output of processor receiver
• USB-B 2.0 high speed extension from wall plate to RX USB 3 port hub
• Control plate for source selection, display / system power on/off, audio source selection and volume
• Supports resolutions up to 4k
• Integrated scaling up to 4k with fast switching
• HDCP2.2 compliant
• Auto switching or manual switching via control plate or web GUI
• Web based remote monitoring software allows centralized status view and control of system from anywhere on the LAN. Also offers remote configuration for easier setup
• WEB based GUI for local device setup and config & when in user mode full control from any browser device
• UL Listed
