Linear DNR00105 F/G Mgr-2,Mega Rcvr,Com/Gate,2Ch
Regular price
$86.05
Unit price
Brand: Linear
|
SKU:
760595
Regular price
$86.05
Unit price
Description
Description

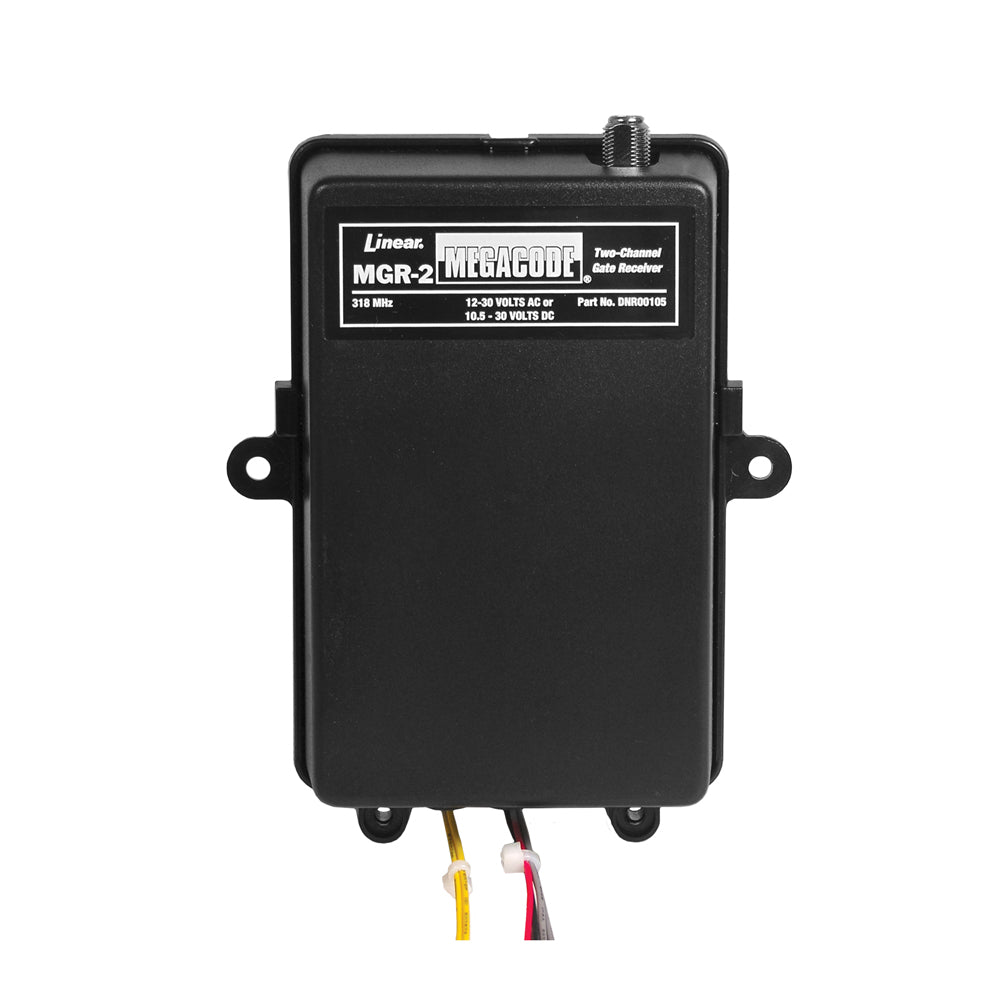

Linear Corporation DNR00105 | 2-Channel Gate Receiver
The MGR-2 is a 2-Channel Gate Receiver designed for use with automatic gate operators or systems where a remote antenna is needed. The MGR-2 can operate two gates, one gate and an obstacle sensor, or channel one can open the gate and channel two can close the gate. The receiver uses the MegaCode radio format with over a million possible code combinations. Up to 40 transmitters can be programmed into the receiver.
Linear Corporation - DNR00105 - Features
- Two Form ”A” (normally open) relays rated at 30 Volts AC/DC up to 5 Amps
- Supplied with whip antenna, three feet of coaxial cable, and bulkhead connector
- Memory: storage for up to 40 MegaCode transmitters
- Power: 12 – 30 VAC or 10.5 – 30 VDC
- Codes: 1,000,000+ (MegaCode format)
- RF frequency: 318 MHz
- Dimensions: 3.625? W x 5.25? H x 1.5? D
Specifications
Specifications
Linear Corporation - DNR00105 - Specifications
| UNSPSC Code | 43211700 |
|---|
