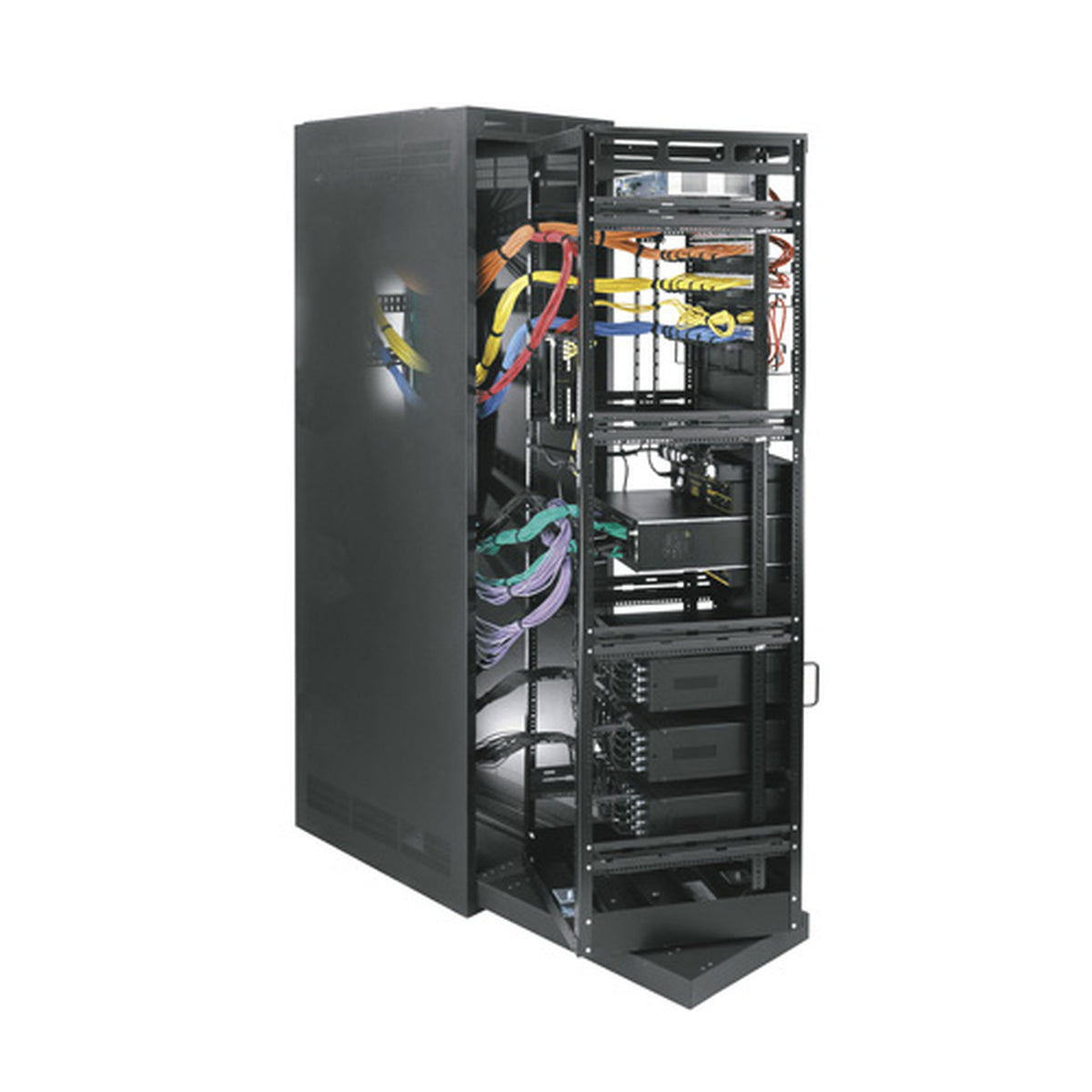

Middle Atlantic WR-37-32 | WR Series Rack, 32 7/8" D X 76-5/8&...
Regular price
$2,757.48
Unit price
Brand: Middle Atlantic Products
|
SKU:
303393
Regular price
$2,757.48
Unit price
Description
Description
The WR Series was designed to provide for rear access to equipment even when the equipment bays are placed up against a wall or back to back. Factory-assembled in its own host enclosure, the rack frame pulls out and rotates for service access. Specify a WR Series enclosure when easy access to rear equipment connections is required for larger audio, video and security equipment installations but an access aisle is not practical.
37u 26in Depth Slide Out Rack. The WR Series was designed to provide rear access for equipment even when the equipment bays are placed up against a wall or back to back. Factory-assembled in its own host enclosure, the rack frame pulls out and rotates for service access. Specify a WR Series enclosure when easy access to rear equipment connections is required for larger audio, video and security equipment installations but an access aisle is not practical.
37u 26in Depth Slide Out Rack. The WR Series was designed to provide rear access for equipment even when the equipment bays are placed up against a wall or back to back. Factory-assembled in its own host enclosure, the rack frame pulls out and rotates for service access. Specify a WR Series enclosure when easy access to rear equipment connections is required for larger audio, video and security equipment installations but an access aisle is not practical.
Main Features
- Standard front and rear heavy-gauge, 10-32 threaded rackrail with marked
- rackspace increments speeds equipment mounting
- Host enclosure can be pre-installed on-site while detachable rack frame is
- integrated with equipment off-site, simplifying installation
- Finished in a durable black textured powder coat
- Requires no additional accessories to roll out and rotate
- Engineered ventilation locations optimize passive thermal management
- Configurable open top accepts a number of options for active thermal
- management, see pgs. 32-33 for top options
- Effective cable management system provided
- Slots in upper rack frame accommodate Velcro ties
- Rack frame features pre-punched rackrail brackets for built-in cable management
- 4 laser knockouts provided for cable pass-through and ganging multiple racks
- Regulatory / Certifications
- UL Listed in the US and Canada
- 750 lb. weight capacity with proper weight distribution
- GREENGUARD Indoor Air Quality Certified for Children and Schools
- (the most strict level)
Specifications
Specifications
Specification
| Rack Units (Size U) | 37 |
|---|---|
| Thread Type | 10-32 Tapped |
| Usable Depth (Inches) | 26 |
| Door Style | No Door |
| Weight Capacity | 750 |
| External Width (Inches) | 24 |
| External Height (Inches) | 76.61 |
| External Depth (Inches) | 32.875 |
| Internal Width (Inches) | 19.00 (EIA Compliant) |
| Color | Textured Black Powder Coat |
| Material | Steel |
| Country of Origin | Made in USA |
| Warranty | Lifetime |
| Certifications | RoHS, Greenguard, CSA, UL Listed |
| Manufacturer | Middle Atlantic |
| Airflow | FRONT-TO-REAR |
| Color | BLACK |
| Multi-compartment | NO |
| Material | STEEL |
| Nema Rating | NO |
| Model | MIXED USE |
| Seismic Rating | NO |
| Mounting Width | 19" |
| Type | FREE-STANDING |
| Rail Style | TAPPED |
| Overall Depth | GREATER THAN 2’ TO 3’ |
| Overall Height | GREATER THAN 6’ TO 7’ |
| Overall Width | GREATER THAN 1’ TO 2’ |
| Rack Units | 37U |
| UNSPSC Code | 24102001 |
