Brand: Neutrik
|
SKU:
NC3MXX

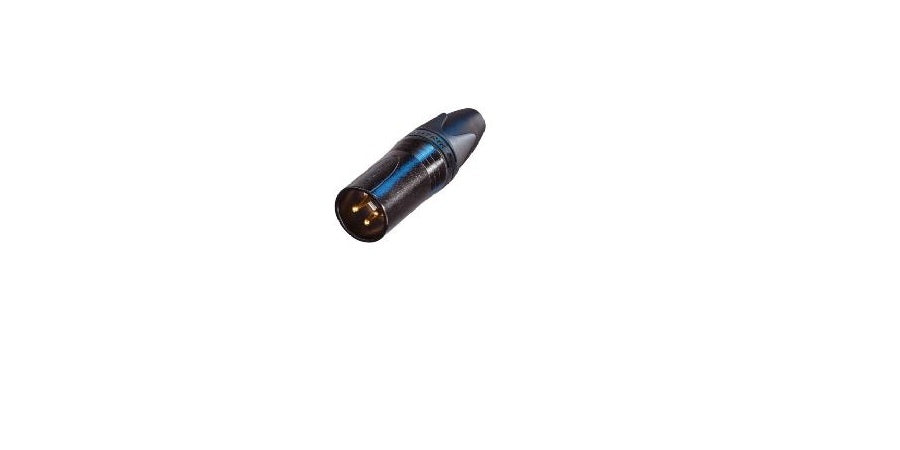

Neutrik NC3MXX | Cable Connector, XLR Male Connector, Solder Termination, 3 m Impedance, Silver Contact Plating
Regular price
$4.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Neutrik NC3MXX | Cable Connector, XLR Male Connector, Solder Termin...
Regular price
$4.29
Unit price
Description
Description
Neutrik NC3MXX | Cable Connector, XLR Male Connector, Solder Termination, 3 m Impedance, Silver Contact Plating
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X Series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Neutrik - NC3MXX - Features
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
Specifications
Specifications
Neutrik - NC3MXX - Product Categories
- Network Cabling Infrastructure
- Coaxial Cabling Infrastructure
- Coaxial Hardware
- Coaxial Connectors
Neutrik - NC3MXX - Specifications
| Manufacturer Name | Neutrik |
|---|---|
| Manufacturer Part Number | NC3MXX |
| Item Description | Cable Connector, XLR Male Connector, Solder Termination, 3 m Impedance, Silver Contact Plating |
| Amperage | 16 A |
| Body Finish | Nickel-Plated |
| Cable Insulation Od | 3.5 To 8.0Mm |
| Cable Size | 14 Awg |
| Contact Material | Brass |
| Contact Plating | Silver Plated |
| Dimensions | Lxdia: 2.717 X 20.4Mm |
| Finish | Nickel-Plated |
| Insulation Resistance | ≫10 Gî© |
| Length | 2.637 To 2.717 In. |
| Material | Polyurethane Boot, Polyamide Insert, Die-Cast Zinc Shell |
| Product Type | 3-Pole Straight Cable Connector |
| Resistance | ? 3 M? |
| Temperature Rating | -30 To +80 C |
| Termination | Solder |
| Voltage | ≪50 V |
| Width | 0.8 In. |
