Neutrik NC4FD-LX | Receptacle DLX Series 4 Pin Female - Solder - Ni...
Regular price
$9.70
Unit price
Brand: Neutrik
|
SKU:
NC4FD-LX
Regular price
$9.70
Unit price
Description
Description

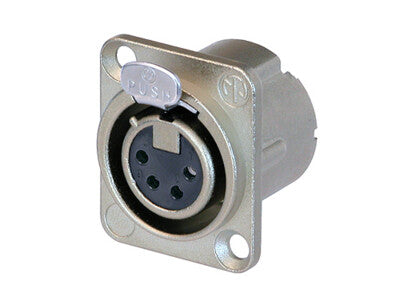

Neutrik NC4FD-LX | Receptacle DLX Series 4 Pin Female - Solder - Nickel/Silver
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.
Neutrik - NC4FD-LX - Features
- All metal housing offers best overall RF protection and electromagnetic shielding
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Specifications
Specifications
Neutrik - NC4FD-LX - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Locking Wiring Devices
- Locking Receptacles
Neutrik - NC4FD-LX - Specifications
| Manufacturer Name | Neutrik |
|---|---|
| Manufacturer Part Number | NC4FD-LX |
| Item Description | Receptacle DLX Series 4 Pin Female - Solder - Nickel/Silver |
| Color | Silver |
| Material | Nickel Housing |
| Mounting Style | Panel Mount |
| Number Of Poles | 4 |
| Number Of Wires | 4 |
| Product Type | Receptacle |
| Special Rating | Ul 94 V-0 |
| Temperature Range | -30 To +80 |
| Wire Size - Maximum | 16 |
