Neutrik NC4FXX | Cable End Female 4 Pin
Regular price
$8.20
Unit price
Brand: Neutrik
|
SKU:
NC4FXX
Regular price
$8.20
Unit price
Description
Description

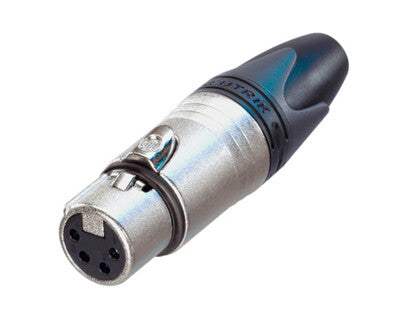

Neutrik NC4FXX | Cable End Female 4 Pin
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Neutrik - NC4FXX - Features
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
Specifications
Specifications
Neutrik - NC4FXX - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Electrical Connectors
- Other Electrical Connectors
Neutrik - NC4FXX - Specifications
| Manufacturer Name | Neutrik |
|---|---|
| Manufacturer Part Number | NC4FXX |
| Item Description | Cable End Female 4 Pin |
| Amperage | 10 |
| Cable Outside Diameter Maximum | 8 |
| Cable Outside Diameter Minimum | 3.5 |
| Connector Type | Xlr |
| Fire Rating | Ul 94 V-0 |
| Gender | Female |
| Material | Die Cast Zinc |
| Number Of Poles | 4 |
| Operating Temperature | -30 To +80 |
| Product Type | Cable Connector |
| Resistance | 10 |
| Special Rating | Ip 40; Iec 68-2-20; Ul |
| Voltage | 50 |
| Wire Size | 16 |
