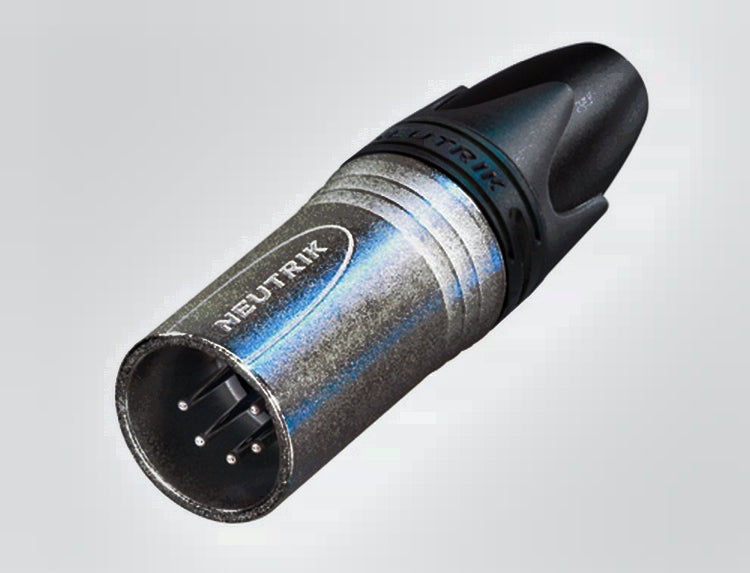

Neutrik NC5MXX | XLR Cable Connector, Nickel Silver, 18 AWG, Brass Conductor
5 pole male cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Neutrik - NC5MXX - Features
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
Specifications
Specifications
Neutrik - NC5MXX - Product Categories
- Audio, Visual and Telephony
- Audio and Visual
- AV Cable and Connectors
- Other AV Cable and Connectors
Neutrik - NC5MXX - Specifications
| Manufacturer Name | Neutrik |
|---|---|
| Manufacturer Part Number | NC5MXX |
| Item Description | XLR Cable Connector, Nickel Silver, 18 AWG, Brass Conductor |
| Amperage Rating | 7.5 A |
| Amperage | 7.5 A |
| Color | Nickel Silver |
| Conductor Material | Brass |
| Conductor Size | 18 Awg |
| Connector Type | Male |
| Dimensions | Od: 3.5 To 8 Mm |
| Outside Diameter | 3.5 To 8Mm |
| Product Type | Xlr Cable Connector |
| Temperature Rating | -30 To 80 C |
| Voltage Rating | ≪50 V |
| Voltage | ≪50 V |
