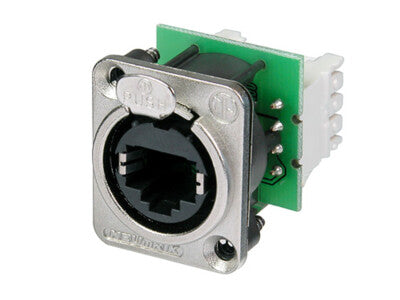

Neutrik NE8FDV-Y110 | Panel Mount Receptacle, Cat 5e, Die-Cast Zinc...
Description
Description
Panel mount receptacle with IDC 110 punch down terminals, D-shape metal flange with latch lock, max. panel thickness 4mm, mounting screws included. The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
Neutrik - NE8FDV-Y110 - Features
- Accommodates NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Mountable from the front or rear of the panel
- CAT5e according to ISO/IEC 11801 and TIA/EIA 568A/B
- Selectable ground - panel connection
- Easy and quick mounting using 110 type punch down terminals
- PoE type 3 class 6 (60W) acc. IEEE 802.3bt
Specifications
Specifications
Neutrik - NE8FDV-Y110 - Product Categories
- Network Cabling Infrastructure
- Copper Cabling Infrastructure
- Copper Connectivity
- Copper Jacks
Neutrik - NE8FDV-Y110 - Specifications
| Manufacturer Name | Neutrik |
|---|---|
| Manufacturer Part Number | NE8FDV-Y110 |
| Item Description | Panel Mount Receptacle, Cat 5e, Die-Cast Zinc, 20 to 26AWG |
| Body Material | Die-Cast Zinc |
| Category | Cat 5E |
| Number Of Ports | 1 |
| Termination | 110 |
| Wiring | A/B Universal |
