Neutrik NO2-4FDW-1-A | Feed-Through Chassis Connector, Designed as ...
Description
Description

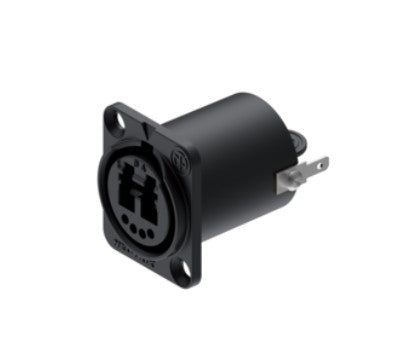

Chassis connector with black chromium plating, 4 solder contacts, 1 LC duplex feedthrough socket and 1 shell ground contact (for SMPTE cable shield), waterproof according to IP65 ingress protection in mated condition with SCDP. The chassis connector acts as a "feed-through" allowing simplified installations by connecting a conventional LC duplex on the rear. It is built-in the standard D-size shell and features an automatic sealing cover for maximum dust and dirt protection and a push-pull locking mechanism for safe connection.
Neutrik - NO2-4FDW-1-A - Features
- Suggested OEM equipment connector due to LC front compatibility
- Designed as feedthrough with automatic sealing shutter
- Shutter with silicone gasket protects optical connection from dust and dirt
- Suitable for indoor (studio) camera links considering specific conditions acc. to IEC 60664-1 like pollution degree 1, overvoltage category 1 and rated voltage
- Accommodates standard LC connectors on the rear for simple installation
- Connection on the front side either by rugged opticalCON or standard LC connector
- The low cost of the chassis connector makes it a viable alternative to traditional connectors in fixed installations
- IP65 ingress protection in mated condition with SCDP-*
- Color coding with SCDP-* according to ANSI/TIA-568.3-D Standard:, Multimode - black, Single mode PC - blue, Single mode APC - green
Specifications
Specifications
Neutrik - NO2-4FDW-1-A - Product Categories
- Electrical Supplies and Lighting
- Electrical Supplies
- Electrical Connectors
- Other Electrical Connectors
Neutrik - NO2-4FDW-1-A - Specifications
| Manufacturer Name | Neutrik |
|---|---|
| Manufacturer Part Number | NO2-4FDW-1-A |
| Item Description | Feed-Through Chassis Connector, Designed as feedthrough with automatic sealing shutter |
| Cord Shape | Round |
| Inputs | Lc Duplex |
| Outputs | Lc Duplex |
| Product Type | Feed-Through Chassis Connector |
| Special Feature | Designed As Feedthrough With Automatic Sealing Shutter |
| Special Rating | Ip65 |
