Northern Video N2IPPTZ30X | N2 Series 2Mp H.265 Ip Ptz Poe, /24Vac 30X Wdr 600' Ir In/Out, Ip66 White
Categorized under - Shop by Manufacturer/Northern Video | Security | Video Surveillance | Surveillance Cameras

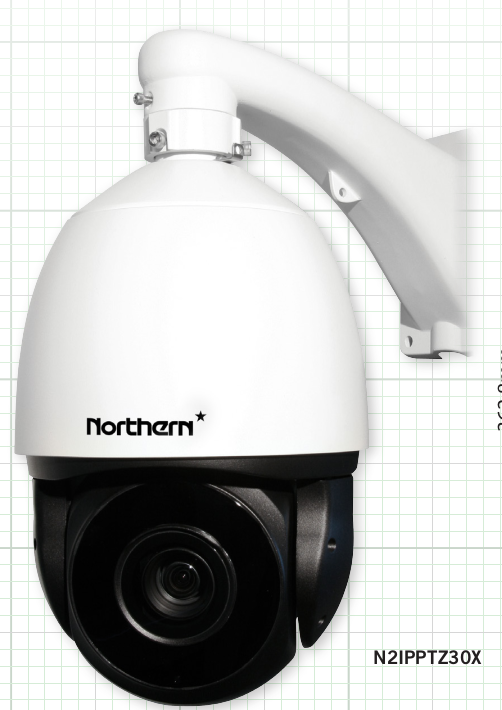

N2 Series 2MP IP, True WDR Outdoor 30X PTZ Camera with POE, 600’ IR, IP66
Northern Video - N2IPPTZ30X - Features
- Full HD 1080p Real Time Video
- True 120dB Wide Dynamic Range
- Intelligent Auto Tracking
- 30X Optical Zoom (4.5 ~135mm)
- POE Power Over Ethernet
- Included HI-POE Injector
- Free CMS Software
- True D/N Mechanical IR Cut Filter
- 10 High Power IR LED’s, 600’ IR Range
- 360° Endless Panning
- 400 Preset Postions
- 6 Tracks, 12 Tours, 12 Scans
- Audio Line In/Out
- 7 Alarm Inputs / 2 Outputs
- Built in Heater & Fan
- -40° Operating Temperature
- IP66 Weatherproof
Specifications
Specifications
Northern Video - N2IPPTZ30X - Included Accessories
- Quick Setup Guide

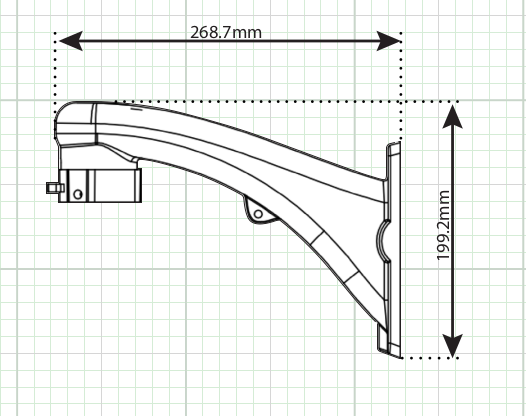

- Wall Mount
- Hi POE Injector
- Slotted Screw Driver
- Gloves
- Stainless Hex Screw M5 9mm
- Stainless Hex Screw M6 14mm x3
- Terminal Block x2
- Bracket Connector x3
Northern Video - N2IPPTZ30X - Specifications
| Image Sensor | 1/2.8" Progressive Scan CMOS |
|---|---|
| Image Resolution | 2 Megapixel, 1920 x 1080 Max |
| Min. Illumination | Color: 0.01Lux @(F1.2, AGC ON), B/W: 0.0 Lux (IR LED ON) |
| White Balance | Auto / Tungsten / Daylight / Manual (Red & Blue Gain Adjustable) |
| AGC | Auto / Manual (0 - 100 Adjustable) |
| S/N Ratio | 55dB |
| 2DNR & 3DNR | Auto / Manual (0 - 100 Adjustable) |
| BLC & HLC | Yes (0 - 100 Adjustable) |
| True WDR | Yes 120dB (0 - 100 Adjustable) |
| Defog | Yes (0 - 100 Adjustable) |
| Shutter Speed | Auto / Manual, 1/5 – 1/20,000s |
| True Day & Night | Yes - Mechanical IR Cut Filter |
| Optical / Digital Zoom | 30X Optical Zoom - 16x Digital Zoom |
| Privacy Mask | Yes - On / Off, 4 Area, Size & Color Adjustable |
| Focus Mode | Auto, Manual, Semi-Auto, Sensitvity Adjustable (0 – 100) |
| Auto Tracking | Yes |
| Focal Length | 4.5 ~ 135mm, F1.6 ~ F4.4 |
| Zoom Speed | Approx. 4 sec. (Optical, Wide-Tele) |
| Angle of View | Horizontal: 59.8° ~ 2.3° |
| Min. Working Distance | 1.5 Meters |
| Pan / Tilt Range | Pan: 0° ~ 360° endless, Tilt: -10° ~ +90° |
| Pan / Tilt Speed | Manual: Pan: 0.1° ~180° /s, Tilt: 0.1° ~90° /s, Preset: Pan: 180° /s, Tilt: 90° /s |
| Proportional Zoom | Rotation Speed Adjusted Automatically According to Zoom |
| Number of Presets | 400 |
| Idle Action | Activates: Preset / Scan / Tour / Track if no command in the specified period |
| Track / Tour / Scan | 6 -Tracks (Custom Pattern) / 12 Tours (Preset Pos.) / 12 Scans (Custom Pattern) |
| Power-off Memory | On/Off - Preset, Scan, Track, Tour Selectable |
| Position Display | Yes |
| Scheduled Tasks | Up to 8/Day Preset, Scan, Track, Tour |
| IR Distance | 600' |
| IR Intensity | Automatically Adjusted, Depending on the Zoom Ratio |
| Alarm Input / Output | 7 Ch Input / 2 Ch Output |
| Alarm Trigger | Perimter, Single & Double Virtual Fence, Loiter & Multi-Loiter, Object Left & Removal, Abnormal Speed, Illegal Parking |
| Alarm Actions | Preset, Track, Tour, Scan, Recording, Relay Output, Email Linkage |
| Audio Input / Output | 1x RCA Female/ 1x RCA Female |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Frame Rate | Stream 1: 1920×1080/1280×720 @25/30fps,Stream 2: D1/VGA/640×360/CIF/QVGA @25/30fps,Stream 3: VGA/CIF/QVGA @25/30fps |
| Compression | H.265, H.264, MJPEG |
| ROI | Yes |
| Audio Compression | G.711, RAW_PCM |
| Protocols | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, Onvif |
| Simultaneous View | 10 Max |
| SD Card | Yes - Micro SD card slot - 128GB Max (Card not included) |
| Users | 10 Max |
| Security | User Authentication (ID & Password), IP Filter (Black/White List), HTTPS |
| Web Browser | |
| Power Input | AC24V/Hi-POE |
| Power Consumption | 1.8 Amp / Less than 40W |
| Operating Temp | -40°C ~ 60°C (-40°F ~ 140 °F) |
| Protection Level | Protection Level |

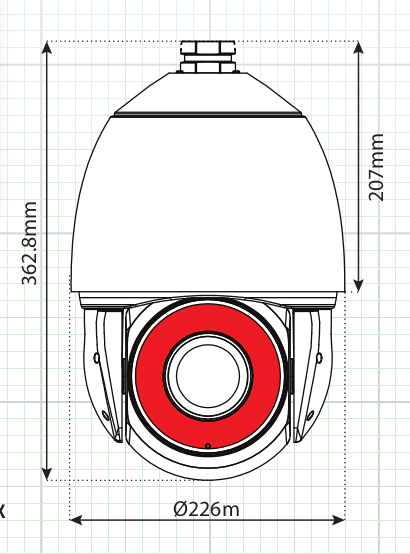

| Dimensions | ?226×362.8mm (2.9" x 14.28") |
| Certifications | CE / FCC |
| Weight (approx.) | 5.2Kg (11.4lb) |
| Compression Type | Multiple Compression Types |
| Poe | Yes |
| Dome Color | Clear |
| Environment | Indoor / Outdoor |
| Form Factor | Dome |
| Lens Type | Vari-Focal |
| Position Type | Pan-Tilt Zoom |
| Resolution | 2 Megapixels |
| Signal Process | Ip |
| UNSPSC Code | 46171610 |
