Nvent Eriflex MBJ2510010 | Braid, MBJ Guarded Braided, CU 25-100-10...
Regular price
$9.40
Unit price
Brand: Nvent Caddy
|
SKU:
782688
Regular price
$9.40
Unit price
Description
Description

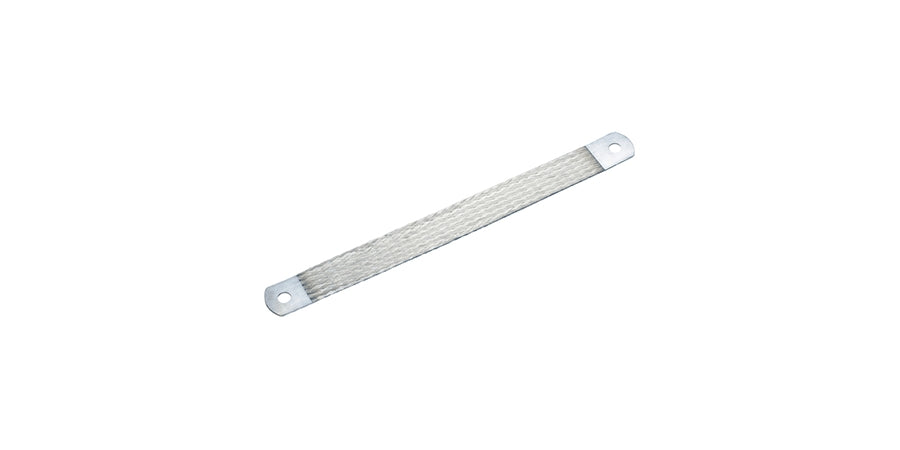

Nvent Eriflex MBJ2510010 | Braid, MBJ Guarded Braided, CU 25-100-10, Copper Tinned
Nvent Eriflex - MBJ2510010 - Features
- Complete range of earth ground, flexible connections from 6 - 100 sq-mm (11.84 to 197.35 kcmil) cross section and from 100 to 500 mm (3.94 to 19.69 in) length
- Integral palm without tinned or crimped lugs for superior electrical contact and tensile strength resistance
- Resistant to vibration and fatigue, reducing maintenance
- Provides weight savings, material savings and lower impedance when compared to similar lugged cables with insulation
- Ready to use out of the box, eliminates the need for cutting, stripping, crimping and punching
- Quick and easy installation
- Recommended by the EMC/EMI directives and less impedance than cables
- 221 deg F maximum working temperature
- 0.059 in overall braid thick
Specifications
Specifications
Nvent Eriflex - MBJ2510010 - Product Categories
- Power Products
- Pole Line Equipment
- Utility Grade Connectors
- Grounding Braids
Nvent Eriflex - MBJ2510010 - Specifications
| Manufacturer Name | Nvent Caddy |
|---|---|
| Manufacturer Part Number | MBJ2510010 |
| Item Description | Braid, MBJ Guarded Braided, CU 25-100-10, Copper Tinned |
| Amperage | 150 |
| Component | Accessories |
| Connector Type | Braid |
| Hole Center To End | 28 |
| Hole Diameter | 10.5 |
| Length | 100 |
| Material Rating | Copper |
| Material | Tinned Copper |
| Product Type | Grounding And Bonding Braid |
| Special Rating | Iec 60439.1 And Iec 61439.1 Standards |
| Thickness | 1.9 |
| Width | 20 |
| Wire Size | 25 |
| UPC | 782856578543 |
