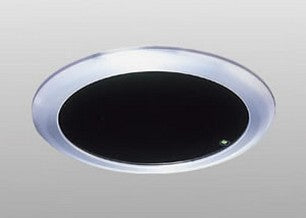

Opetx OA-70C Ceiling Recess Mount 12/24V

The OA-70C is a ceiling recess mount w/ 12/24V from Optex which is specially manufactured to provide high adaptability to all environments that it is used within. The OA-70C ceiling recessed mount comes with flexible area settings, a no tool simple adjustment, AIR sensors and microcontroller immunity to snow, rain and insects, as well as a silver/white color, and an active infrared reflection. The OA-70C ceiling recessed mount also features a 2.0 mounting height, an active infrared detection technique, an operation indicator, plus a 0.3 response time, and a 0.5sec relay hold time. This recessed mount is able to offer easy detection depth adjustments, and provides effortless installation within many applications.

Features

Flexible area settings

Simple adjustment with no tool

Adaptable to all environments

AIR sensors and microcontrollers are generally immune to the effects of external factors such as rain, snow and insects

Specs

Manufacturer Optex Inc

Condition New

Model OA-70C

Cover Color Silver/White

Mounting Height 2.0(6’6 ¾”) to 4.0(13’1 ½”)m

Detection Method Active Infrared Reflection

Detection Area Adjustments Depth -6º to 8º Width -10º to +10º

Detection Technique Active Infrared(Near Infrared Reflection)

Power Supply 12(-5%) to -24V (+10%) AC 12(-5%) to -30V (+10%) DC

Power Consumption <4VA,<200mA(12VDC)

Operation Indicator Green/Standby Red/1st Row Detection Active Orange/Other Row Detection Active

Output “Form C” relay 50V, 0.3A max.(resistance load)

Relay Hold Time Approx. 0.5sec

Response Time < 0.3sec

Operating Temperature -20ºC to +55ºC(-4º F to +131º F)
