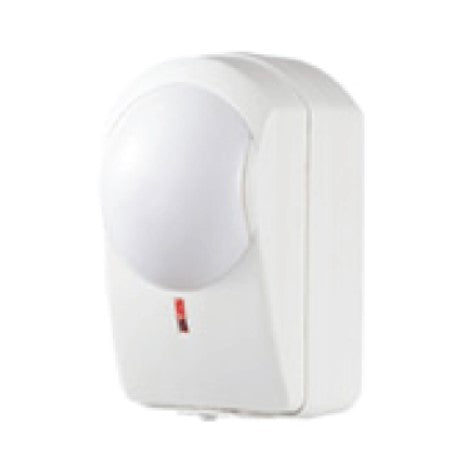

Optex EX35R | 35X35/55X5.5' Wireless

The battery-powered EX-35R is a low-cost indoor PIR with a back box for battery and wireless transmitter (not included). You can select between precise wide-angle and long-range coverage, and also multi-level or pet alley detection patterns. By incorporating our patented multi-focus technology into the spherically designed lens, the EX-35R has successfully eliminated sensitivity problems caused by changes in detection patterns.

Optex - EX35R - Features

• Wide detection coverage: 11m x 11m 85°
• Long detection range: 17m x 1.7m
• Low current battery-operated model (battery not included)
• Selectable Dual-Purpose Spherical Fresnel Lens, Wide Angle & Long Range
• Selectable Multilevel & Pet Alley Detection patterns
• Patented Multi-Focus Lens
• RFI Protection: 20V/m
• Selectable Pulse Count: 2 or 4
• LED On/Off Switch
• Tamper Switch

Optex - EX35R - Specifications

UNSPSC Code	46171600
Connectivity Technology	Wireless
Application/Usage	Indoor
Weight (Approximate)	5 oz

Optex - EX35R - Documents and Downloads

Optex EX35R Data Sheet	Click to View
Optex EX35R Installation Instruction	Click to View
