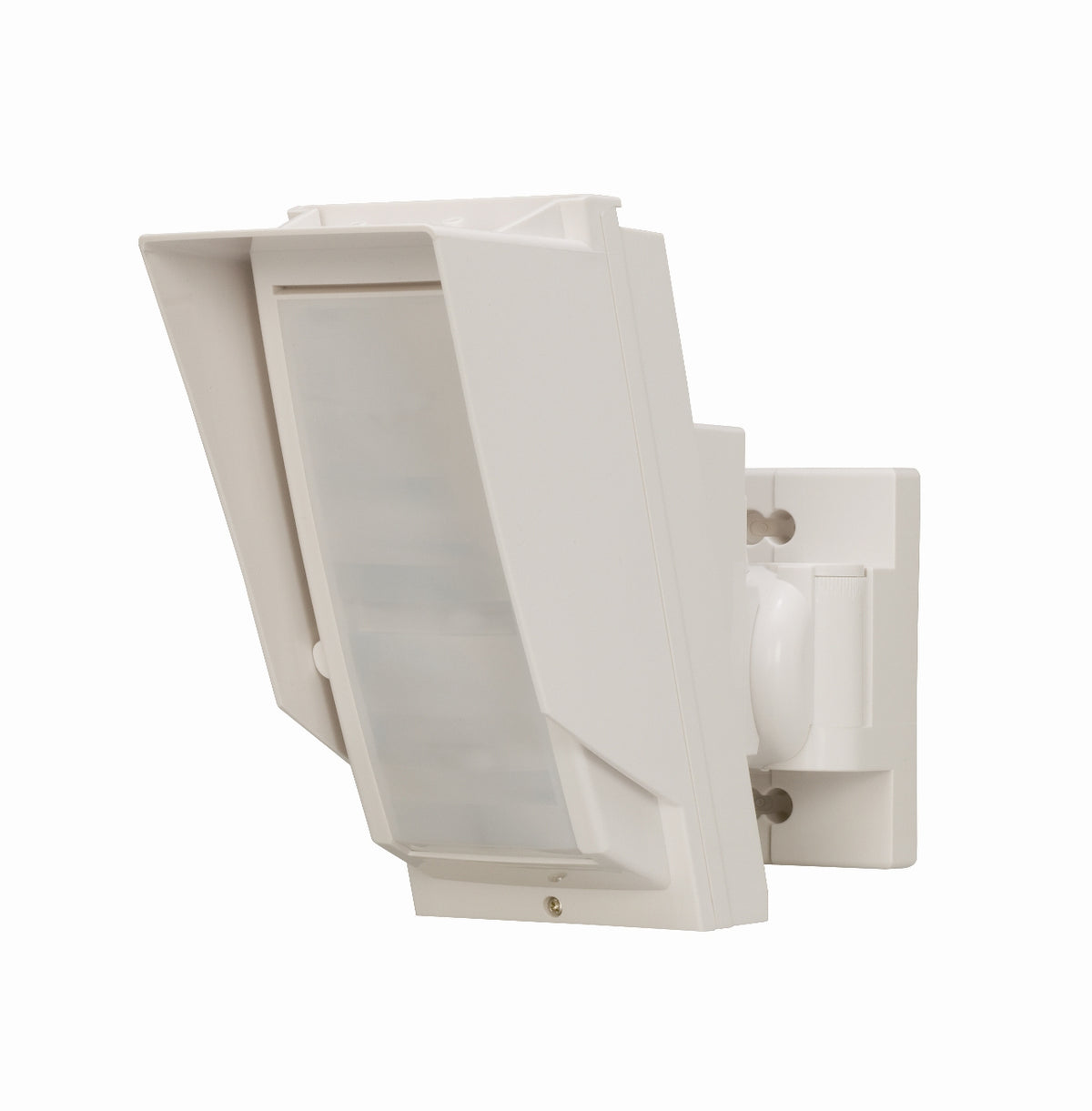

Optex HX-80NRAM | Wireless 80' Long and Narrow High Mount Outdoor PIR

The HX-80NRAM from Optex is a wireless 80' long and narrow high mount outdoor PIR. The new HX-80NRAM from Optex is an 80' x 6' wireless-ready, high mount outdoor passive infrared detector that provides the stability and reliability necessary for an outdoor PIR sensor. The most important element in reliable outdoor detector is accuracy to distinguish a human from a small animal. The exclusive pyro element on board enables the HX to project an ideal detection pattern, thus allowing for more accurate detection of humans and less false alarms. In addition, the HX-80NRAM dual PIR's and 20 detection zones utilize the 'AND' detection pattern technology - upper and lower detection areas have to be activated in order to generate an alarm condition. This technology helps to prevent false alarms caused by a pet or small animal. The HX Series' detection length can be limited to avoid unwanted detection, and it's short range zones can be masked if needed. By limiting the detection range, false alarms due to unwanted movement (cars, persons or animals outside the protected area) can be eliminated.

The HX-80NRAM is a high mount, battery-powered, outdoor passive infrared detector with Anti-Masking that provides the stability and reliability necessary for an outdoor PIR sensor. The battery-powered version accepts most manufacturer's wireless transmitters, and allows installers to save valuable installation time and labor costs because no trenching, installing conduit or pulling wire is required. The most important element in reliable outdoor detector is accuracy to distinguish a human from a small animal. The exclusive pyro element on board enables the HX to project an ideal detection pattern, thus allowing for more accurate detection of humans and less false alarms. In addition, the HX-80NRAM's dual PIR's and 20 detection zones utilize the 'AND' detection pattern technology - upper and lower detection areas have to be activated in order to generate an alarm condition. This technology helps to prevent false alarms caused by a pet or small animal. The HX Series' detection length can be limited to avoid unwanted detection, and it's short range zones can be masked if needed. By limiting the detection range, false alarms due to unwanted movement (cars, persons or animals outside the protected area) can be eliminated.
