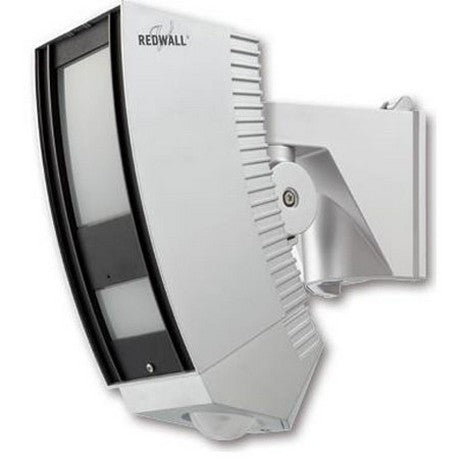

Optex SIP-5030 | 165' x 100' Superior Intelligent PIR detector

The SIP-5030 is a superior wide angle intelligent PIR detector from Optex which is ideally designed to operate at high efficiency within many applications. The SIP-5030 intelligent PIR detector comes with the detection of ambient temperatures/illuminance for auto sensitivity management, an inbuilt creep zone detector, advanced detection algorithm, anti-vandalism functions, as well as a reinforced polycarbonate housing, a 13ft max height installation, and an anti-rotation function w/ 3 axis accelerometer. The SIP-5030 PIR detector also offers double conductive shielding for the main area, an independent sensitivity selector, anti-masking functions w/ photo-beam, plus an adjustable alarm interval time, and a 50 x 30m coverage. This professional and reliable PIR detector is able to provide optimal operation, and can easily detect tampering or vandalism for use in high risk areas.

The SIP-5030 offers wide angle-detection for triggering CCTV systems in large areas outside. It has an intelligent detection system that uses data from the ambient environment, such as temperature and illuminance conditions, to automatically adjust the sensitivity. In addition, the SIP-5030 has a seperate PIR detector at the bottom of the unit to cover the creep zone area. This second creep zone PIR has an independent output that is separate from the main output, and can be used to protect the area around the detector while the main output can trigger the CCTV system. The detection angle in the main area of the SIP-5030 can be adjusted to easily match a camera's field of view and the unit is also equipped with anti-rotation and anti-masking functions, which can detect vandalism or tampering with the unit.

Optex - SIP-5030 - Features

• 2 in one detectors with an independant creep zone sensor unit to cover the area between the detector and the buidling
• Intelligent PIR detection system
• Automatic sensitivity management to ambient temperature and light
• Advanced detection algorithm
• Double dual/one Quad pyro-elements with patented Double Conductive Shielding for main area
• Anti-vandalism functions including anti-masking and anti-rotation function with 3-axis accelerometer
• 7.6ft to 13ft mounting height
• Independant sensitivity for creep/ near and far detection zones
• Detection logic selector
• Detection range selector
• Independant N.C. and N.O. outputs for main areas
• Adjustable alarm interval time
• Detection of ambient temperature and illuminance for automatic sensitivity management
• Double Dual/One Quad pryo-elements with patented Double Conductive Shielding for main area
• Built-in creep zone detector (Double dual pyro-elements)
• Anti-vandalism functions
• Anti-rotation function with 3-axis accelerometer
• Anti-masking function with photo-beam
• Reinforced polycarbonate housing
• Max. 13ft. installation height
• Independent sensitivity selector for creep/near/far areas
• Independent N.C. and N.O. output for main area SIP-5030
• 2 x N.C. and N.O. independent output for main areas (Near and Far areas) SIP-100

Optex - SIP-5030 - Specifications

Manufacturer	Optex Inc
Condition	New
Model	SIP-5030
Detection Method	Passive infrared
Coverage (main area)	50 x 30 m (165 x 100 ft.)
Coverage (creep zone)	5 x 5m (16 x 16ft.) Detection angle adjustable
Power input	11-16VDC 22-26VAC
Current draw	40mA max. (12VDC) 75mA max. (24VAC)
Mounting height	2.3 to 4 m (7.6 to 13 ft)
Sensitivity selector for SH/H/M/L Creep zone	SH/H/M/L
Alarm Output (main area)	N.O., N.C. 28VDC 0.2A max.
Alarm output(creep zone)	N.O., N.C. 28VDC 0.2A max
Alarm interval period	Off/15, 30, 60 sec.
Trouble output	N.C., 28VAC 0.2A max.
Tamper output	N.C., 28VAC 0.1A max.
Alarm period	Approx. 2 sec.
Warm-up period	Approx. 60 sec.
IP rating Main unit	IP65
Chassis	IP55
Dimensions	(H x W x D) 200 x 110 x 240 mm (7.9 x 4.3 x 9.4 in.)
