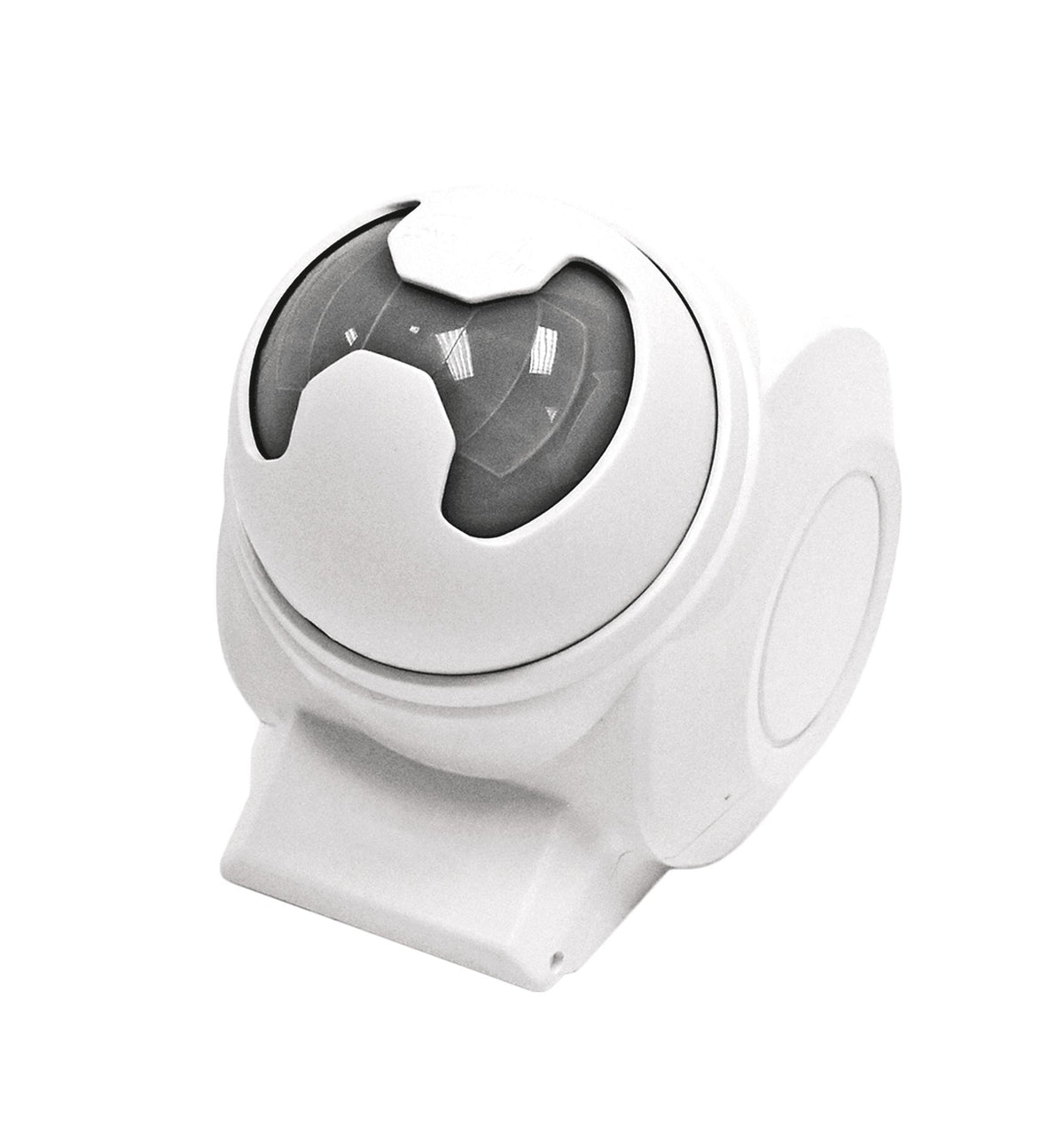

Optex TD-20U | Long Range In/Outdoor Transmitter

The TD-20U is a long range indoor and outdoor transmitter from Optex which is highly compatible with the TR-20U repeater, the RC-20U chime box w/ relay, and any 1000 series wireless receiver. The TD-20U transmitter comes with a 17ft selectable fan pattern, a 50ft long range distance, an LED indicator for low battery status, and verifying detection, as well as a supervised low battery, and over 8 million codes possible for eliminating interference from neighbors. The TD-20U transmitter also features a weatherproof structure, multiple mounting options, a passive infrared detection method, plus a compact and lightweight design. This professional transmitter is user friendly, and comes effortless to setup for any operator for fast operation.

The TD-20U is the battery-powered sensor transmitter for the RCTD-20U (Wireless 2000). The detection pattern is selectable, allowing for a 17 foot fan pattern or 50 foot beam pattern, and sends a signal back to the RC-20U chime box when compromised. The device is powered by a standard 9V battery (not included), and up to nine TD-20U's can be added to one RC-20U receiver. Products are backwards compatible and will work with the RC-10U Series.

Optex - TD-20U - Features

• Choose 50ft. Long Range or 17ft. Fan (Wide) detection pattern
• Weather proof housing (IP54 rating) for both indoor and outdoor use
• Uses passive infrared to detect motion and send RF signals to receivers
• 2000ft. transmission range (line of sight)
• Compatiable with RC-20U(Chime Box W/Relay), TR-20U(Repeater) and any receiver of Wirless 1000 series
• 50ft. Long range & 17ft. fan pattern selectable
• Can be installed on the wall, celling and desktop
• Weatherproof structure(IP54) for indoor and outdoor applications
• Over 8 million codes possible, eliminates interference from neighbors
• Powered by a 9V alkaline battery(not Included)
• LED indicator for verifying detection and low battery status

Optex - TD-20U - Specifications

Manufacturer	Optex Inc
Condition	New
Model	TD-20U
Detection method	Passive infrared
Detection Area	50ft (15m) Long Range or 17ft (5m) Fan Pattern
Angle Adjustment	±45° Vertically & ±5° Horizontally or ±5° Vertically & 45° Horizontally
Status Indicator	Red LED
Power Source	9V Alkaline Battery
Battery Life Approx.	2yrs [250 times per at 70°F (20°C)]
Frequency	418MHz
Operating Temperature	15°F~120°F (-10°C~+50°C)
Installation Location	Outdoor/Indoor
Accessories	Mounting Screw × 2
