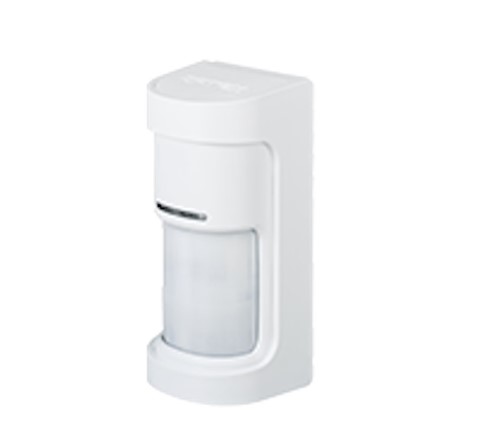

Optex WXS-AM | 40’ 180 Outdoor Hardwired PIR with Anti-Masking
Description
Description
The WXS outdoor intrusion sensors can be installed at a low mount providing a flexible detection area from 2.5 to 12m. It can also be mounted at 2.0m high, creating a volumetric detection area with 9m detection range. This option can be effective to avoid vandalism or masking of lens. In low mount configuration, the WXS intrusion detection sensors feature two completely independent 90 degrees detection areas (left and right), that can be set at different detection distance, sensitivity and trigger independent alarm outputs which is very useful for PTZ activation.
Optex - WXS-AM - Features
- Up to 12m, 180 degree outdoor PIR with anti-masking
- 4 PIR providing left/ right double layered detection for pet tolerance
- Selectable low (0.8m-1.2m) or high (2m) mount
- Independent left/ right detection areas and alarm outputs - ideal for CCTV
Specifications
Specifications
Optex - WXS-AM - Specifications
| Product Range | WX Shield Series |
|---|---|
| Detection method | Passive infrared |
| Relative humidity | 95% max. |
| Mounting height | Hight mount?2.0 m (6' 7") Low mount? 0.8 to 1.2 m (2' 7" to 4' ) |
| Security Grade | IP55 |
| Weight | 585 g (20.7 oz) |
| Installation Method (indoor/outdoor) | Outdoor |
| Operation temperature | -30? to +60?(-22°F to +140°F) |
