Panduit BC4LH-S25-L0 | Dome-Top® Barb Ty Clamp Tie
Regular price
$79.64
Unit price
Brand: Panduit
|
SKU:
10083468
Regular price
$79.64
Unit price
Description
Description

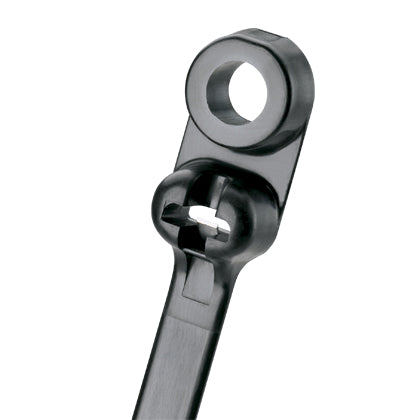

Panduit BC4LH-S25-L0 | Dome-Top® Barb Ty Clamp Tie
Panduit Barb-Ty Dome-Top Clamp Tie, Light Heavy, Series: BC Series, 15-1/2 in Length, 0.28 in Width, 0.07 in Thickness, 4 in Bundle Dia, Locking, 120 lb Tensile, -76 to 185 deg F, Nylon 6.6, Black
Our barb ty cable tie features a unique patented design with smooth edges and a secure stainless steel locking barb, providing reliability and endless adjustment options for your cables.
Panduit - BC4LH-S25-L0 - Features
- The 2-piece design incorporates a stainless steel locking barb which provides consistent performance, reliability and infinite adjustability through entire bundle range
- High loop tensile strength exceeds industry standards and the patented low thread force design reduces operator fatigue and improves productivity
- Offers high strength and superior performance
- Dome-Top head having smooth, round edges is easy for installers to handle
- Anti-slip ribbed and stippled strap body prevents axial and lateral movement
- Exclusively designed finger grip assures positive grip during threading of tie
- Design allows for bundling before or after screwing clamp in place
- Curved tip orients tip toward head for faster initial threading to speed installation
- Used to secure a cable bundle to another surface such as a control panel, communication rack, wall or ceiling
Specifications
Specifications
Panduit - BC4LH-S25-L0 - Specifications
| Product Type | Locking Clamp Tie |
|---|---|
| Sub Brand | Dome-Top® |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 15.5 |
| Overall Length (mm) | 394 |
| Body Width (In.) | 0.275 |
| Body Width (mm) | 7 |
| Body Thickness (In.) | 0.065 |
| Body Thickness (mm) | 1.7 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 102 |
| Minimum Bundle Diameter (In.) | 0.188 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Loop Tensile Strength (N) | 534 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Screw Size | 1/4" |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| UPC | 07498352327 |
Panduit - BC4LH-S25-L0 - Package Information
| UPC | 07498352327 |
|---|---|
| Standard Packaging Quantity | 50 |
| Standard Packaging Volume (cf) | 0.0534 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.5339 |
Panduit - BC4LH-S25-L0 - Videos
| Panduit BC4LH-S25-L0 Videos | Click to View |
|---|
